RVVP 300/300V PVC Shielded Flexible Control Cable

Product Overview

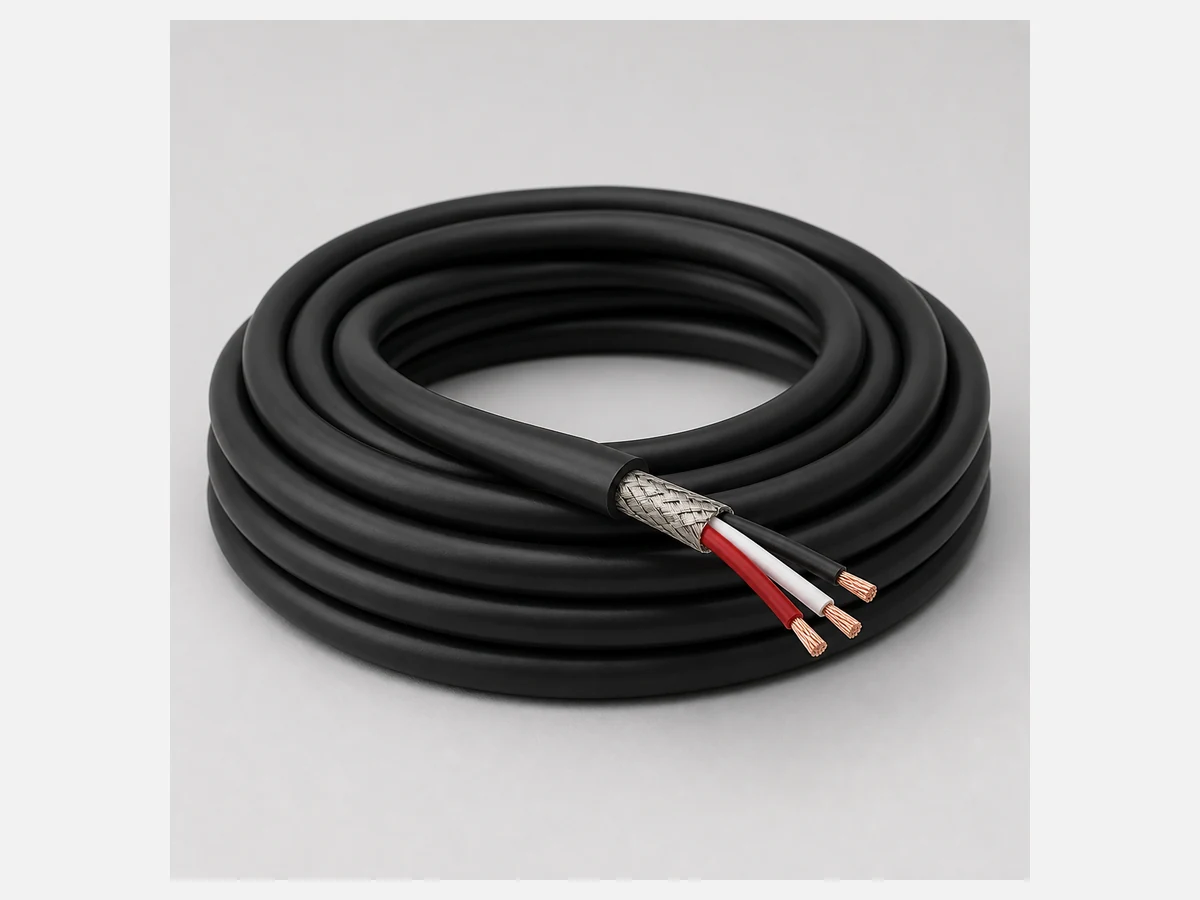

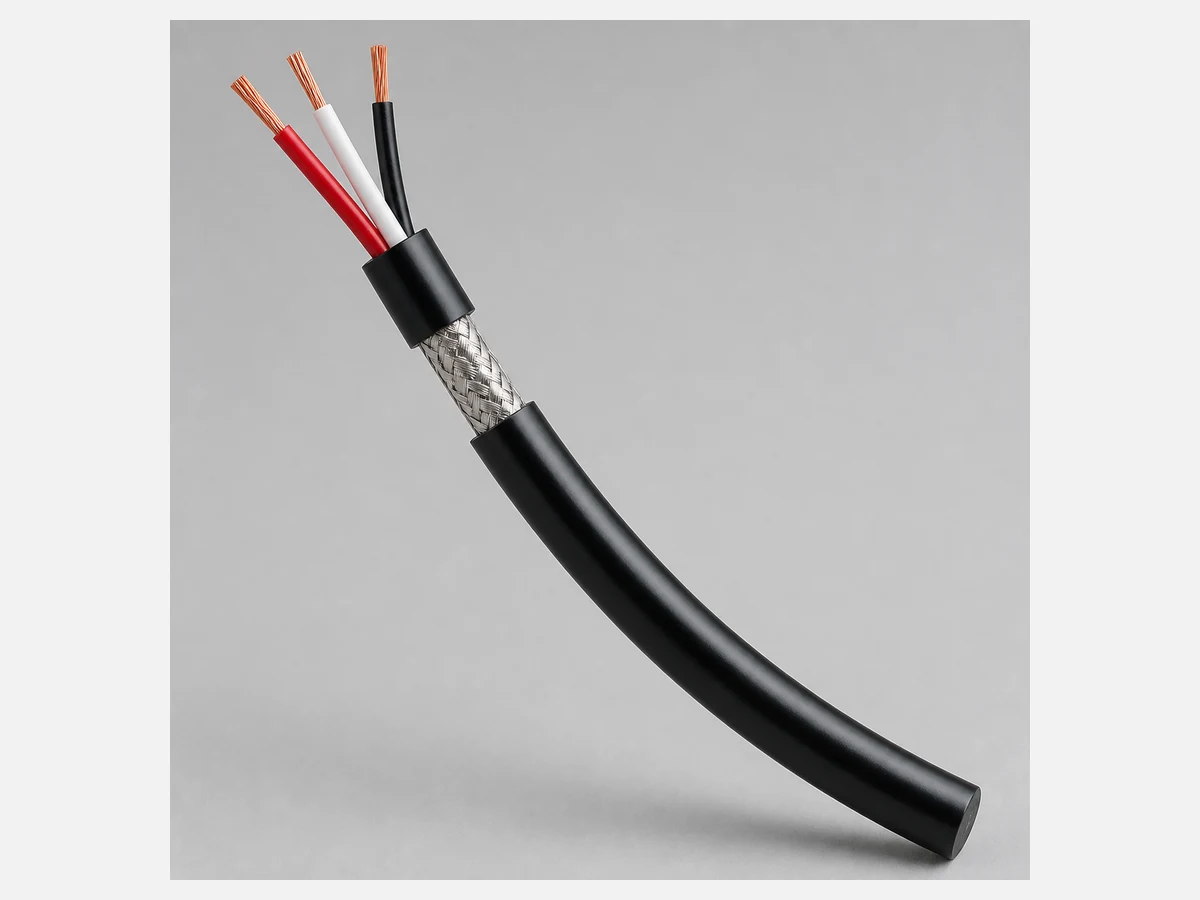

The RVVP shielded flexible control cable is engineered for low-voltage power, control and signal connections that require a compact flexible construction and an overall metallic screen. It uses fine-stranded copper conductors, color-coded PVC core insulation, a tinned-copper braided shield and a black PVC outer sheath. The supplied specification lists 300/300V and 300/500V configurations, a 2500V test voltage and mobile service from -40°C to +80°C. Its screened construction supports stable transmission around electrical equipment, while the flexible conductor design simplifies routing during installation. Core count, conductor area, colors, marking and packaging can be adapted to project requirements.

Key Features

• Fine-stranded copper conductors conforming to DIN VDE 0295 Class 6 and IEC 60228 Class 6.
• Color-coded PVC core insulation for straightforward conductor identification.

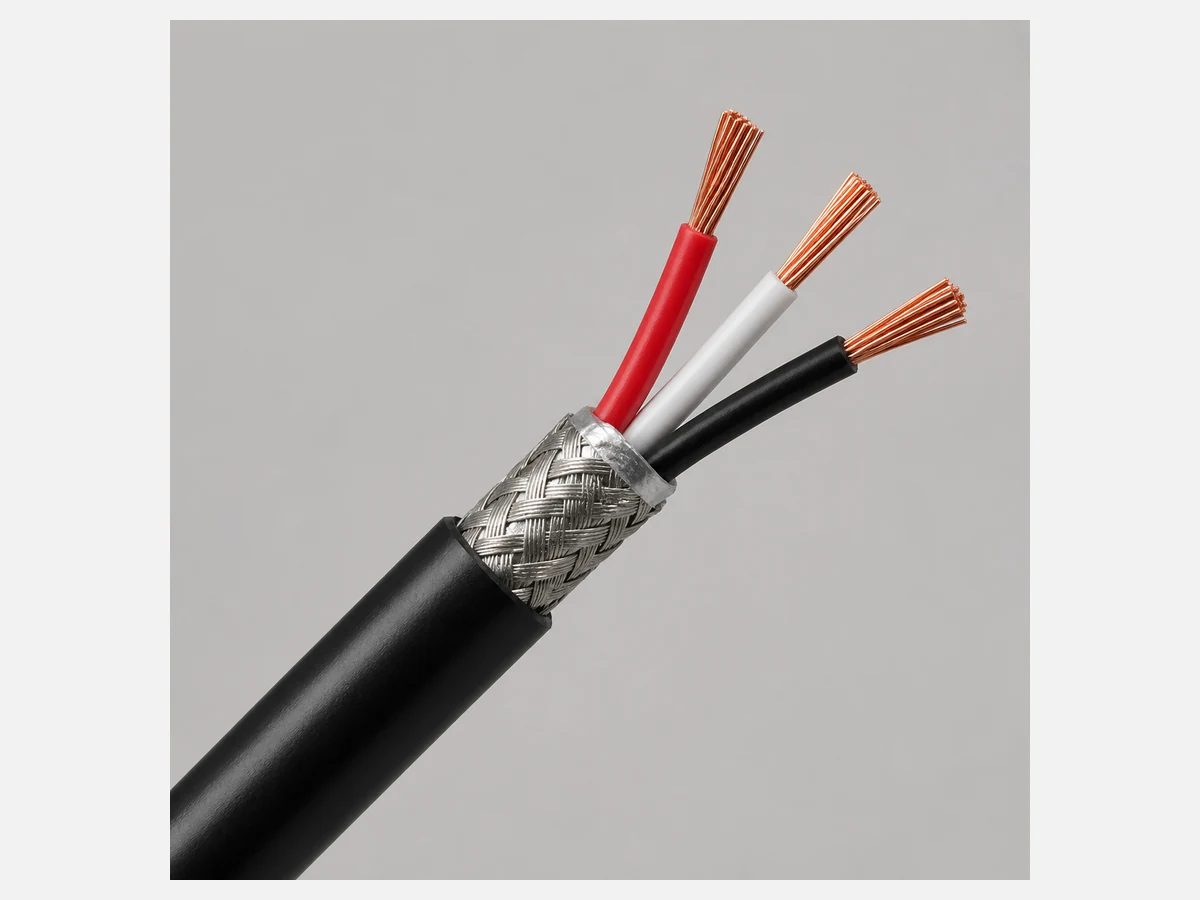

• Overall tinned-copper braided screen with stated minimum 90% coverage.
• Black PVC outer sheath for flexible equipment and control wiring.
• Rated-voltage configurations of 300/300V and 300/500V as listed in the supplied sheet.
• Minimum insulation resistance stated as 100 MΩ·km.
• Mobile minimum bending radius stated as seven times the cable diameter.
• RoHS and REACH conformity is stated in the supplied product data; supporting documents available upon request.

Product Specifications

Applications

Suitable applications include electrical control equipment, instrumentation, machine wiring, automation devices and protected signal or low-voltage power connections where braided screening is required. The cable is intended for flexible installation and normal movement within the limits stated in the supplied data. Installation engineers should confirm conductor loading, voltage, shielding termination, ambient conditions and bend radius for the final assembly. For continuous drag-chain motion, torsion, outdoor exposure or aggressive chemicals, request a purpose-designed high-flex cable rather than assuming standard RVVP is suitable.

Customization Options

Available project options include conductor cross-section, core count, PVC insulation colors, sheath color, braid construction, cable legend, customer logo, cut length, coil or reel format, barcode label and export packaging. Exact electrical dimensions and markings are confirmed against the approved technical specification before production. Custom options are available upon request.

Packaging & Shipping

Supply formats can include measured coils, plastic or wooden reels, protective film, labeled cartons and palletized export packing. Coil length, reel size, carton quantity and gross weight depend on the selected construction and order volume. Shipping can be arranged by courier, air, sea or a buyer-nominated forwarder after packing details are approved.

Manufacturing & Quality Control

Production controls cover conductor stranding, PVC insulation extrusion, core cabling, shield braiding, outer-sheath extrusion and final dimensional inspection. Electrical checks may include conductor continuity, conductor resistance, insulation resistance and voltage testing against the approved specification. Braid coverage, sheath appearance and cable marking are inspected during production. Requested samples, inspection records and available compliance documents can be discussed before mass production.

FAQ

1. What voltage ratings are available?

The supplied sheet lists 300/300V and 300/500V configurations; the applicable rating depends on the selected construction.

2. What does RVVP mean?

It identifies a flexible PVC-insulated, PVC-sheathed cable with an overall screen.

3. What shielding is used?

The supplied construction specifies a tinned-copper braided screen with minimum stated coverage of 90%.

4. Can core count and conductor size be customized?

Yes. Select from the listed constructions or send your required core count and nominal area for review.

5. Is it suitable for signal wiring?

It is intended for shielded control, signal and low-voltage connections when correctly selected and terminated.

6. Can you change the sheath color and printing?

Custom sheath colors, jacket legends and private-label printing are available upon request.

7. Is this a drag-chain cable?

No continuous drag-chain rating is stated for this RVVP product; use a dedicated high-flex cable for that duty.

8. What test documents are available?

Available test and compliance records depend on the confirmed construction and order requirements.

9. What is the MOQ and lead time?

Both depend on construction and customization; contact us for project-specific details.

10. What information is needed for a quotation?

Send voltage, core count, conductor size, cable length, quantity, destination and marking or packing requirements.
