Repeated-motion PVC power cable with multiple conductor cross-sections
Product Overview

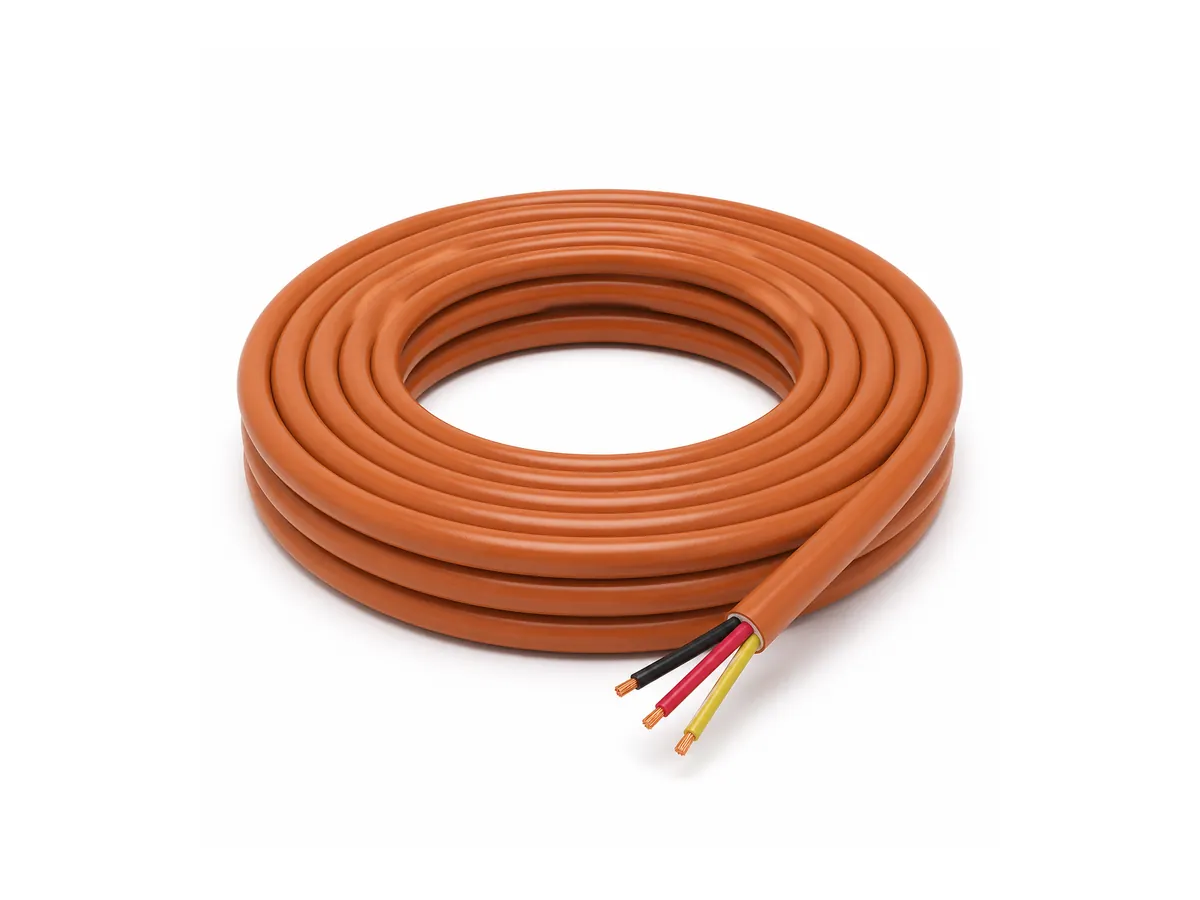

This 5 million cycle high-flex drag chain power cord uses American-standard cable-core sizing for repeated-motion power connections. The supplied design combines fine-stranded tinned-copper conductors, special PVC insulation, color-identified cores, strand filling and a special PVC jacket. Six reference constructions cover two-core, four-core and combined power-plus-auxiliary layouts, with finished diameters from approximately 5.8 to 10.0 mm. It is designed for moving machine installations where flexible routing, acceleration and repeated bending are required. The sheet lists black and orange sheath options, allowing the final appearance to be selected during sample and order confirmation.
Key Features
- Designed for 5 million flex cycles under stated conditions
- American-standard core reference construction
- Six conductor layouts from 0.5 to 2.0 mm²
- Fine-stranded tinned-copper conductors
- U0/U 300/500 V rating and 2000 V test voltage
- Moving bend radius of 7.5D; fixed bend radius of 6D
- Black or orange special PVC sheath options listed
Product Specifications
| Option 1 | 2 × 0.5 mm²; approx. OD 5.8 mm |
|---|---|
| Option 2 | 4 × 0.5 mm²; approx. OD 6.5 mm |
| Option 3 | 4 × 0.75 mm²; approx. OD 7.2 mm |
| Option 4 | 4 × 1.3 mm²; approx. OD 8.3 mm |
| Option 5 | 4 × 2.0 mm²; approx. OD 10.0 mm |
| Option 6 | 4 × 0.5 + 2 × 0.2 mm²; approx. OD 6.3 mm |
| Rated / test voltage | U0/U 300/500 V / 2000 V |
| Temperature, moving / fixed | -5°C to +70°C / -15°C to +80°C |
| Minimum bend radius | Moving 7.5D; fixed 6D |
| Sheath color | Black or orange |
