Compact PUR feedback cable for grating scales and precision positioning systems
Product Overview

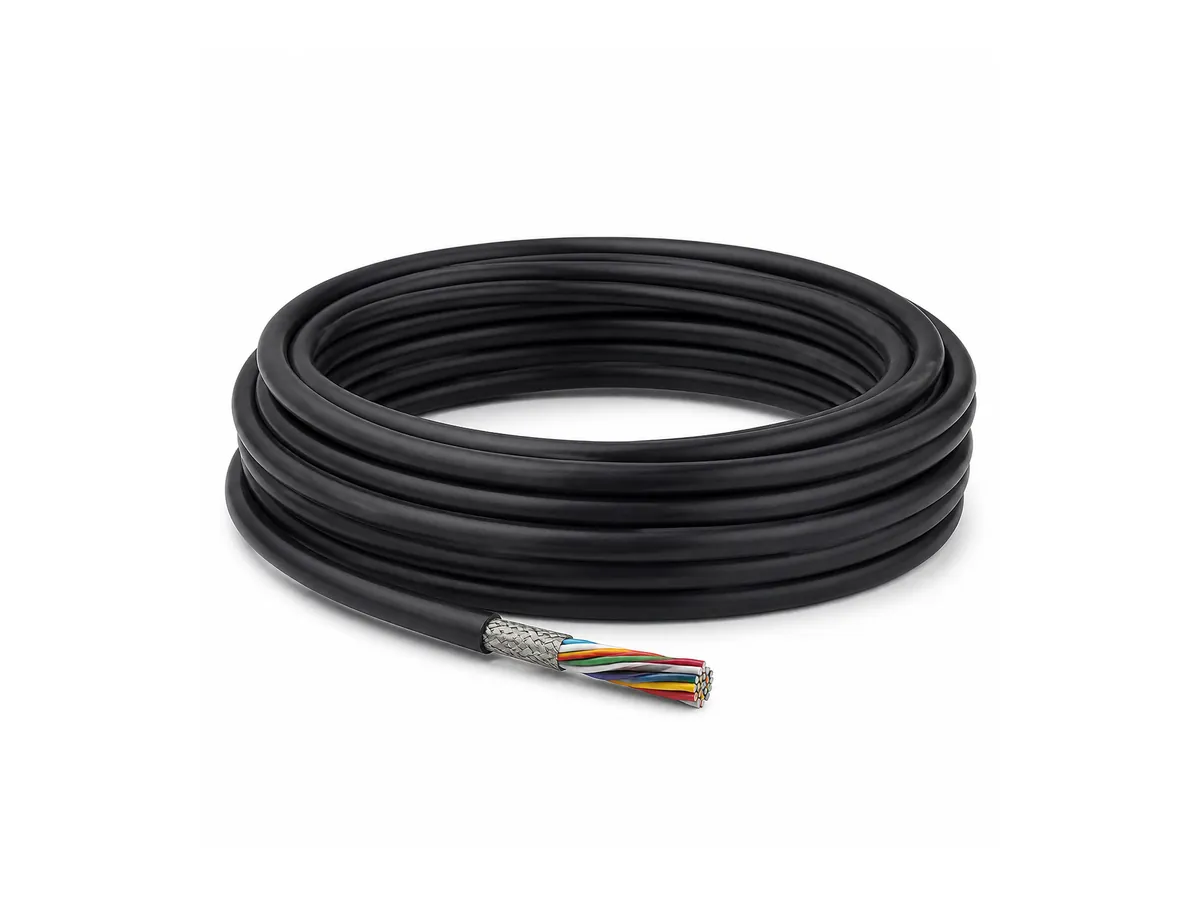

This 50 million cycle ultra-high-speed grating encoder cable supports precision position feedback in continuously moving machinery. Its verified design uses TPE-E insulation, a special PUR sheath, twisted signal pairs, PP filling and a dense tinned-copper braided shield. The compact 4.5–4.8 mm reference diameters help routing through confined machine spaces while maintaining the stated 6D moving bend radius. It is suited to optical scale, grating encoder and linear measurement connections exposed to repetitive travel. Available conductor layouts include 28 AWG × 4 pairs plus braid and a mixed 26/30 AWG arrangement. Connector and pinout details are available upon request.
Key Features
- Designed for 50 million flex cycles under the stated operating conditions
- Compact 4.5 mm and 4.8 mm reference outer diameters
- TPE-E insulated conductors beneath a special PUR jacket
- Tinned-copper braid with at least 90% stated coverage
- 2000 V test voltage and U0/U 300/300 V rating
- Moving temperature range from -20°C to +80°C
- 6D moving and 4D fixed minimum bend radius
Product Specifications
| Configuration A | 28 AWG × 4P + braid |
|---|---|
| Approx. OD A | 4.5 mm |
| Configuration B | 26 AWG × 1P + 30 AWG × 4P + braid |
| Approx. OD B | 4.8 mm |
| Sheath color | Black |
| Rated voltage | U0/U 300/300 V |
| Test voltage | 2000 V |
| Insulation resistance | Minimum 100 MΩ·km |
| Temperature, moving / fixed | -20°C to +80°C / -40°C to +90°C |
| Minimum bend radius | Moving 6D; fixed 4D |
Values above reproduce the supplied product sheet. Other specifications are available upon request.
Applications
- Optical grating scales
- Linear encoders and measuring systems
- Precision CNC positioning
- High-speed inspection equipment
Customization Options
- AWG pairing and signal layout
- Encoder connector and pinout
- Cut length and assembly labeling
- Private-label reel and carton packaging
Packaging & Shipping
Cables can be supplied in coils, reels or export cartons selected for the ordered diameter and length. Each package can carry the product reference, length, batch identification and customer label. Palletizing, moisture protection and shipping marks are available for sea, air and courier transport. Exact reel size, carton quantity and gross weight are confirmed after the final specification is approved.
Manufacturing & Quality Control
Production follows an approved specification from conductor preparation and insulation through cabling, shielding and sheathing. In-process controls cover conductor arrangement, dimensions and appearance. Finished-cable inspection can include continuity, insulation resistance and voltage testing where applicable. Samples and inspection documents are available according to the agreed order requirements.
FAQ
What information is needed for a quotation?
Please provide the required construction, cable length, quantity, moving radius, operating environment and termination details for the grating encoder cable.
Can the conductor layout be customized?
Yes. AWG pairing and signal layout can be reviewed against your drawing and electrical requirements.
Can you supply finished cable assemblies?
Connectorized assemblies are available upon request after the connector model, pinout and test requirements are confirmed.
What is the minimum order quantity?
MOQ depends on the selected construction, material and packaging. Contact us for the applicable production quantity.
What lead time should buyers expect?
Lead time depends on specification approval, raw-material availability and order volume. A project schedule is provided with the quotation.
Can you provide a sample?
Sample availability depends on the selected construction. Existing samples or a custom pre-production sample can be discussed.
How is the cable tested?
Applicable checks may include conductor continuity, dimensional inspection, insulation resistance, voltage testing and visual inspection according to the approved specification.
How should the cable be installed?
Observe the stated temperature and minimum bend-radius limits, avoid twisting, and provide proper strain relief throughout the moving path.
Can packaging and marking be customized?
Cut length and assembly labeling and Private-label reel and carton packaging are available subject to artwork and order review.
Request a Quote
Send your drawing, required length, quantity, connector or pinout, moving radius and operating conditions. Our team will review the correct grating encoder cable construction and prepare a project quotation.
