Gecko-head compatible high-flex shielded feedback cable for servo motion systems
Product Overview

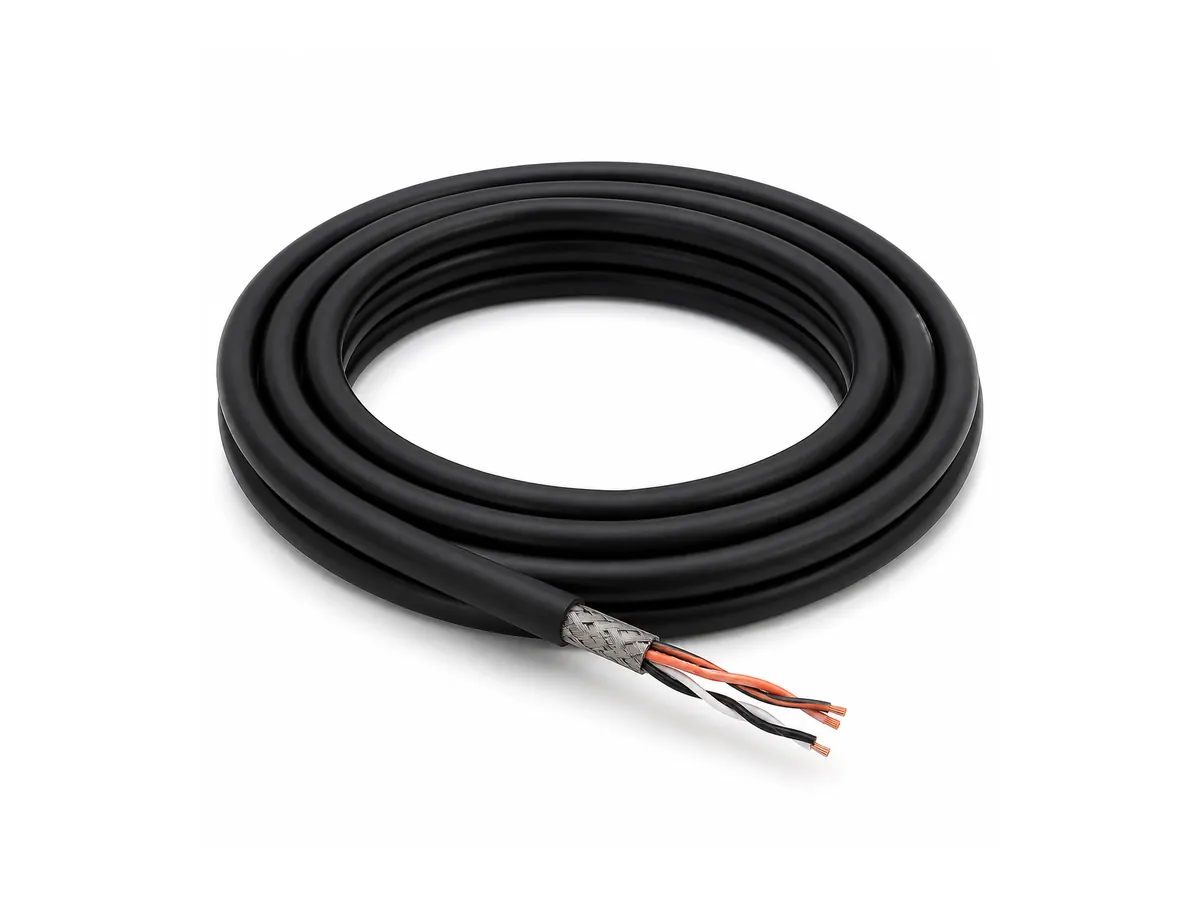

This UL20276 80°C 10 million cycle servo encoder cable is intended for feedback connections in continuously moving servo systems. The verified construction combines fine-stranded tinned-copper conductors, special TPE core insulation, PP filling and an improved tinned-copper braided shield with at least 95% stated coverage. A black RAL 9005 matt special PVC sheath protects the assembly during repeated machine travel. Two paired-conductor reference configurations share an approximate 5.9 mm outer diameter. The cable is suitable for Gecko-head compatible encoder assemblies where the electrical layout, connector and pin assignment are confirmed for the target drive system.
Key Features
- Designed for 10 million flex cycles under the stated conditions
- UL20276 80°C designation from the supplied specification
- Paired 0.14 mm² conductor configurations
- Improved tinned-copper braid with at least 95% coverage
- Special TPE core insulation and PP filling
- Moving bend radius of 7.5D; fixed bend radius of 6D
- Black RAL 9005 matt special PVC outer sheath
Product Specifications
| Configuration 1 | 2 × 2 × 0.14 mm² |
|---|---|
| Configuration 2 | 3 × 2 × 0.14 mm² |
| Approx. outer diameter | 5.9 mm |
| Rated voltage | U0/U 300/300 V |
| Test voltage | 1500 V |
| Insulation resistance | Minimum 100 MΩ·km |
| Temperature, moving / fixed | -5°C to +70°C / -15°C to +80°C |
| Minimum bend radius | Moving 7.5D; fixed 6D |
| Shield coverage | Minimum 95% |
| Sheath | Special PVC, black RAL 9005 matt |
Values above reproduce the supplied product sheet. Other specifications are available upon request.
Applications
- Servo encoder feedback
- Machine-tool servo axes
- Automated positioning systems
- Gecko-head compatible cable assemblies
Customization Options
- 2-pair or 3-pair construction
- Encoder connector and pin assignment
- Finished assembly length
- Logo, label and packaging format
Packaging & Shipping
Cables can be supplied in coils, reels or export cartons selected for the ordered diameter and length. Each package can carry the product reference, length, batch identification and customer label. Palletizing, moisture protection and shipping marks are available for sea, air and courier transport. Exact reel size, carton quantity and gross weight are confirmed after the final specification is approved.
Manufacturing & Quality Control
Production follows an approved specification from conductor preparation and insulation through cabling, shielding and sheathing. In-process controls cover conductor arrangement, dimensions and appearance. Finished-cable inspection can include continuity, insulation resistance and voltage testing where applicable. Samples and inspection documents are available according to the agreed order requirements.
FAQ
What information is needed for a quotation?
Please provide the required construction, cable length, quantity, moving radius, operating environment and termination details for the UL20276 servo encoder cable.
Can the conductor layout be customized?
Yes. 2-pair or 3-pair construction can be reviewed against your drawing and electrical requirements.
Can you supply finished cable assemblies?
Connectorized assemblies are available upon request after the connector model, pinout and test requirements are confirmed.
What is the minimum order quantity?
MOQ depends on the selected construction, material and packaging. Contact us for the applicable production quantity.
What lead time should buyers expect?
Lead time depends on specification approval, raw-material availability and order volume. A project schedule is provided with the quotation.
Can you provide a sample?
Sample availability depends on the selected construction. Existing samples or a custom pre-production sample can be discussed.
How is the cable tested?
Applicable checks may include conductor continuity, dimensional inspection, insulation resistance, voltage testing and visual inspection according to the approved specification.
How should the cable be installed?
Observe the stated temperature and minimum bend-radius limits, avoid twisting, and provide proper strain relief throughout the moving path.
Can packaging and marking be customized?
Finished assembly length and Logo, label and packaging format are available subject to artwork and order review.
Request a Quote
Send your drawing, required length, quantity, connector or pinout, moving radius and operating conditions. Our team will review the correct UL20276 servo encoder cable construction and prepare a project quotation.
