Multi-core control cable for high-speed repetitive machine motion
Product Overview

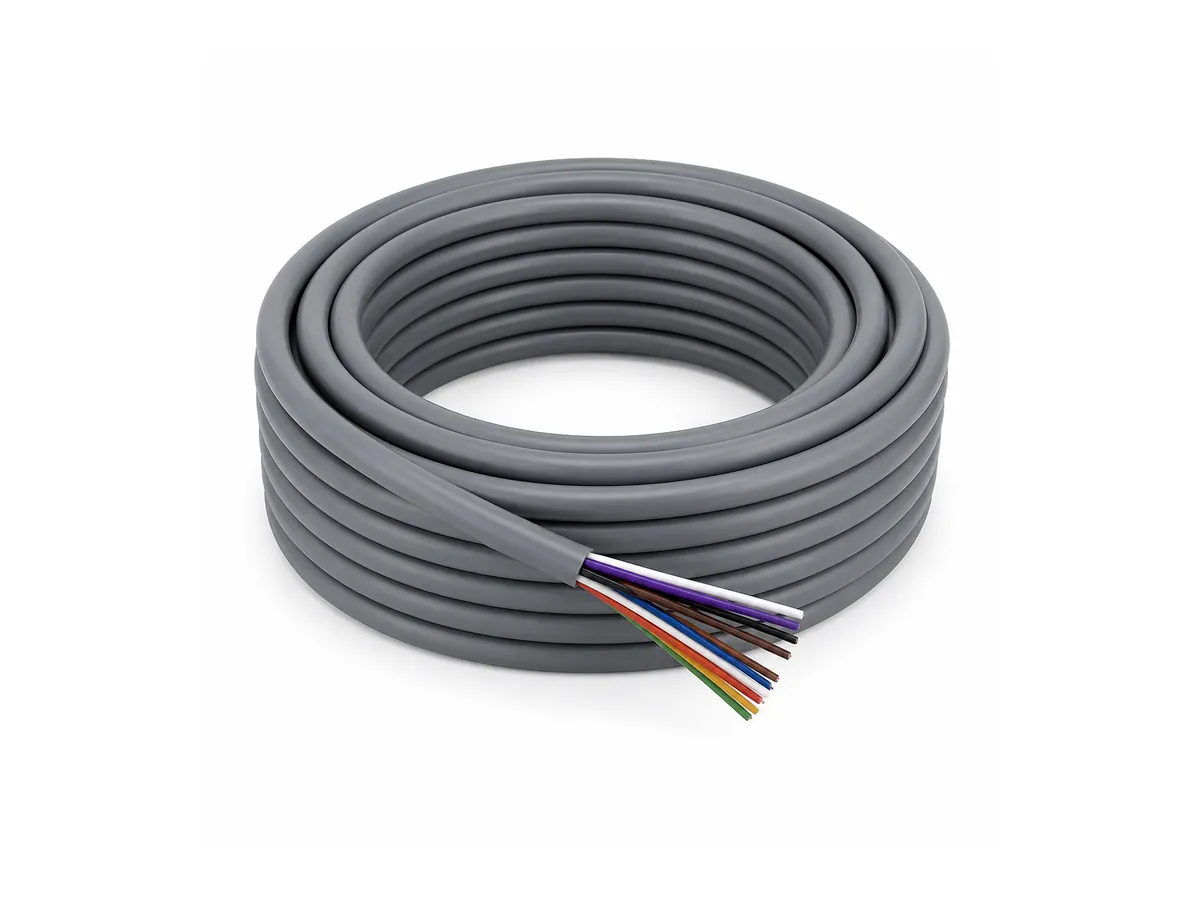

This 1.5 million cycle ultra-high-flex drag chain control cable uses color-identified cores for clear machine wiring and maintenance. The supplied construction combines fine-stranded tinned-copper conductors, special TPE-E insulation and a special PVC sheath. Ten reference configurations range from 2 to 20 cores, all using 0.2 mm² conductors, with approximate outer diameters from 4.4 to 8.2 mm. The 6D moving bend radius supports compact high-speed carrier routing within the stated operating limits. Black and gray sheath options are listed for panel and machine identification, while custom printing and assembly services are available for OEM projects.
Key Features
- Designed for 1.5 million flex cycles under stated conditions
- Ten options from 2 to 20 color-identified cores
- Uniform 0.2 mm² reference conductor cross-section
- Fine-stranded tinned-copper conductors with TPE-E insulation
- U0/U 300/300 V rating and 1500 V test voltage
- Moving bend radius of 6D; fixed bend radius of 4D
- Black or gray RAL 7001 matt PVC sheath options
Product Specifications
| Core / OD options | 2/4.4, 3/4.6, 4/5.0, 5/5.2, 6/5.6 mm |
|---|---|
| Additional options | 8/6.4, 10/7.2, 14/7.0, 16/7.5, 20/8.2 mm |
| Conductor cross-section | 0.2 mm² per core |
| Rated voltage | U0/U 300/300 V |
| Test voltage | 1500 V |
| Insulation resistance | Minimum 100 MΩ·km |
| Temperature, moving / fixed | -5°C to +70°C / -15°C to +80°C |
| Minimum bend radius | Moving 6D; fixed 4D |
| Core insulation | Special TPE-E |
| Sheath | Special PVC, black or gray RAL 7001 matt |
Values above reproduce the supplied product sheet. Other specifications are available upon request.
Applications
- Drag-chain control circuits
- Automated assembly machines
- Robotic peripherals
- High-speed material handling
Customization Options
- 2–20 core count selection
- Black or gray sheath color
- Numbering, printing and terminal assembly
- Cut length, reel and private-label carton
Packaging & Shipping
Cables can be supplied in coils, reels or export cartons selected for the ordered diameter and length. Each package can carry the product reference, length, batch identification and customer label. Palletizing, moisture protection and shipping marks are available for sea, air and courier transport. Exact reel size, carton quantity and gross weight are confirmed after the final specification is approved.
Manufacturing & Quality Control
Production follows an approved specification from conductor preparation and insulation through cabling, shielding and sheathing. In-process controls cover conductor arrangement, dimensions and appearance. Finished-cable inspection can include continuity, insulation resistance and voltage testing where applicable. Samples and inspection documents are available according to the agreed order requirements.
FAQ
What information is needed for a quotation?
Please provide the required construction, cable length, quantity, moving radius, operating environment and termination details for the ultra high flex drag chain control cable.
Can the conductor layout be customized?
Yes. 2–20 core count selection can be reviewed against your drawing and electrical requirements.
Can you supply finished cable assemblies?
Connectorized assemblies are available upon request after the connector model, pinout and test requirements are confirmed.
What is the minimum order quantity?
MOQ depends on the selected construction, material and packaging. Contact us for the applicable production quantity.
What lead time should buyers expect?
Lead time depends on specification approval, raw-material availability and order volume. A project schedule is provided with the quotation.
Can you provide a sample?
Sample availability depends on the selected construction. Existing samples or a custom pre-production sample can be discussed.
How is the cable tested?
Applicable checks may include conductor continuity, dimensional inspection, insulation resistance, voltage testing and visual inspection according to the approved specification.
How should the cable be installed?
Observe the stated temperature and minimum bend-radius limits, avoid twisting, and provide proper strain relief throughout the moving path.
Can packaging and marking be customized?
Numbering, printing and terminal assembly and Cut length, reel and private-label carton are available subject to artwork and order review.
