Shielded green industrial data cable for repeated-flex Ethernet connections
Product Overview

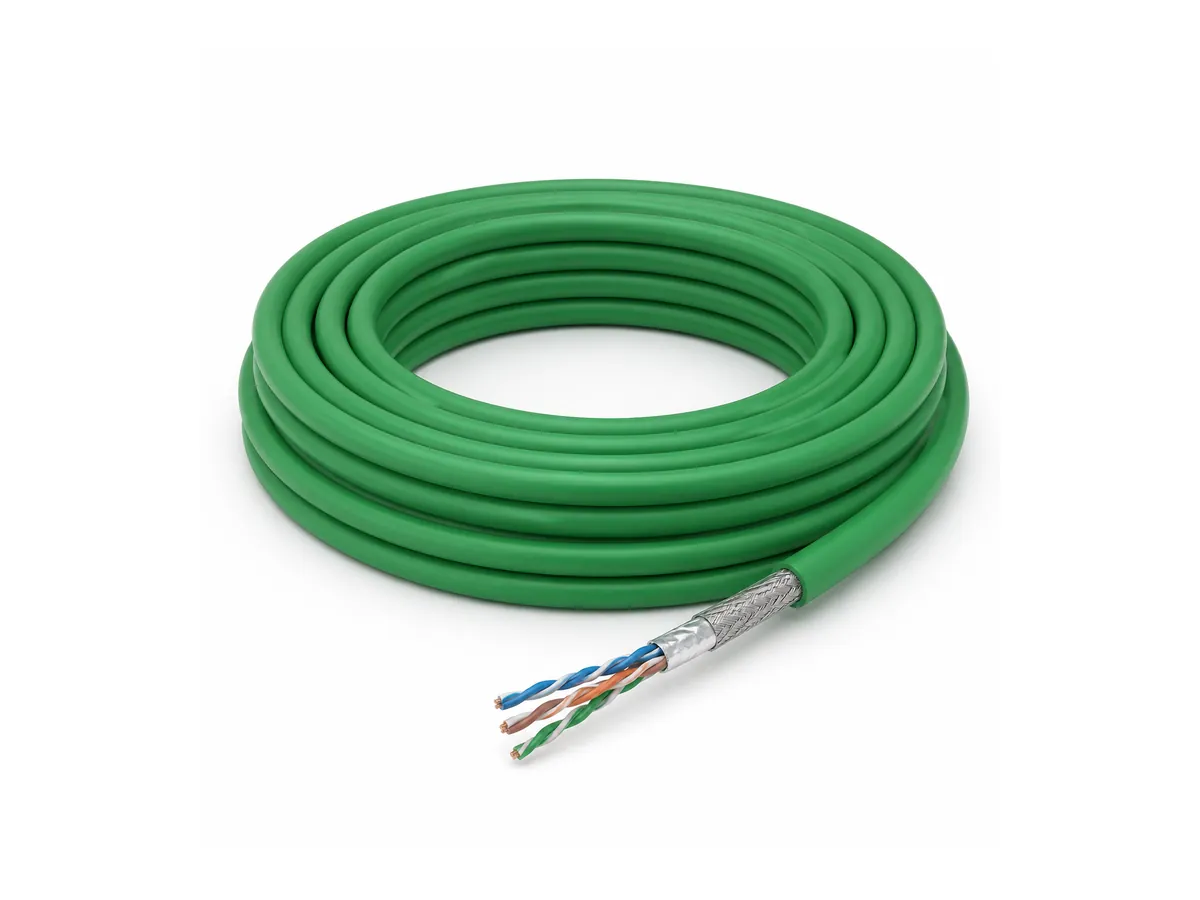

This high-flexibility industrial Ethernet cable is designed for machine-network links that must tolerate repeated movement, acceleration and torsion. The supplied construction uses fine-stranded tinned copper, twisted pairs, core wrapping, an inner sheath and a tinned-copper braided shield with at least 85% stated coverage. A green RAL 6018 matt PVC outer sheath provides clear visual identification inside industrial equipment. Reference CAT5e and CAT6e configurations are available, with 30 V rated voltage and 500 V test voltage. It is suitable for EtherNet/IP and EtherCAT installations where the cable parameters match the equipment and network design.
Key Features
- Reference configurations for CAT5e and CAT6e industrial networks
- Fine-stranded tinned-copper twisted-pair construction
- Tinned-copper braid with at least 85% stated coverage
- Green RAL 6018 matt special PVC sheath
- Moving bend radius of 14D and fixed bend radius of 7D
- Moving temperature range from -5°C to +70°C
- Designed for repeated-flex machine communication links
Product Specifications
| CAT5e option 1 | 4 × 2 × 0.14 mm²; approx. OD 6.5 mm |
|---|---|
| CAT5e option 2 | 4 × 2 × 0.2 mm²; approx. OD 7.0 mm |
| CAT6e listed option | 4 × 2 × 0.14 mm²; approx. OD 7.0 mm |
| Sheath | Special PVC, green RAL 6018 matt |
| Rated voltage | 30 V |
| Test voltage | 500 V |
| Insulation resistance | Minimum 100 MΩ·km |
| Temperature, moving / fixed | -5°C to +70°C / -15°C to +80°C |
| Minimum bend radius | Moving 14D; fixed 7D |
| Shield | Tinned-copper braid, minimum 85% coverage |
Values above reproduce the supplied product sheet. Other specifications are available upon request.
Applications
- EtherCAT machine networks
- EtherNet/IP equipment links
- Robotics and production cells
- CNC and automated assembly lines
Customization Options
- CAT5e or listed CAT6e construction
- Cross-section and finished diameter
- Connectorized patch-cable assembly
- Printing, color and private-label packaging
Packaging & Shipping
Cables can be supplied in coils, reels or export cartons selected for the ordered diameter and length. Each package can carry the product reference, length, batch identification and customer label. Palletizing, moisture protection and shipping marks are available for sea, air and courier transport. Exact reel size, carton quantity and gross weight are confirmed after the final specification is approved.
Manufacturing & Quality Control
Production follows an approved specification from conductor preparation and insulation through cabling, shielding and sheathing. In-process controls cover conductor arrangement, dimensions and appearance. Finished-cable inspection can include continuity, insulation resistance and voltage testing where applicable. Samples and inspection documents are available according to the agreed order requirements.
FAQ
What information is needed for a quotation?
Please provide the required construction, cable length, quantity, moving radius, operating environment and termination details for the high flexibility industrial Ethernet cable.
Can the conductor layout be customized?
Yes. CAT5e or listed CAT6e construction can be reviewed against your drawing and electrical requirements.
Can you supply finished cable assemblies?
Connectorized assemblies are available upon request after the connector model, pinout and test requirements are confirmed.
What is the minimum order quantity?
MOQ depends on the selected construction, material and packaging. Contact us for the applicable production quantity.
What lead time should buyers expect?
Lead time depends on specification approval, raw-material availability and order volume. A project schedule is provided with the quotation.
Can you provide a sample?
Sample availability depends on the selected construction. Existing samples or a custom pre-production sample can be discussed.
How is the cable tested?
Applicable checks may include conductor continuity, dimensional inspection, insulation resistance, voltage testing and visual inspection according to the approved specification.
How should the cable be installed?
Observe the stated temperature and minimum bend-radius limits, avoid twisting, and provide proper strain relief throughout the moving path.
Can packaging and marking be customized?
Connectorized patch-cable assembly and Printing, color and private-label packaging are available subject to artwork and order review.
Request a Quote
Send your drawing, required length, quantity, connector or pinout, moving radius and operating conditions. Our team will review the correct high flexibility industrial Ethernet cable construction and prepare a project quotation.
