High-flex servo power cable for demanding repetitive-motion cable carriers
Product Overview

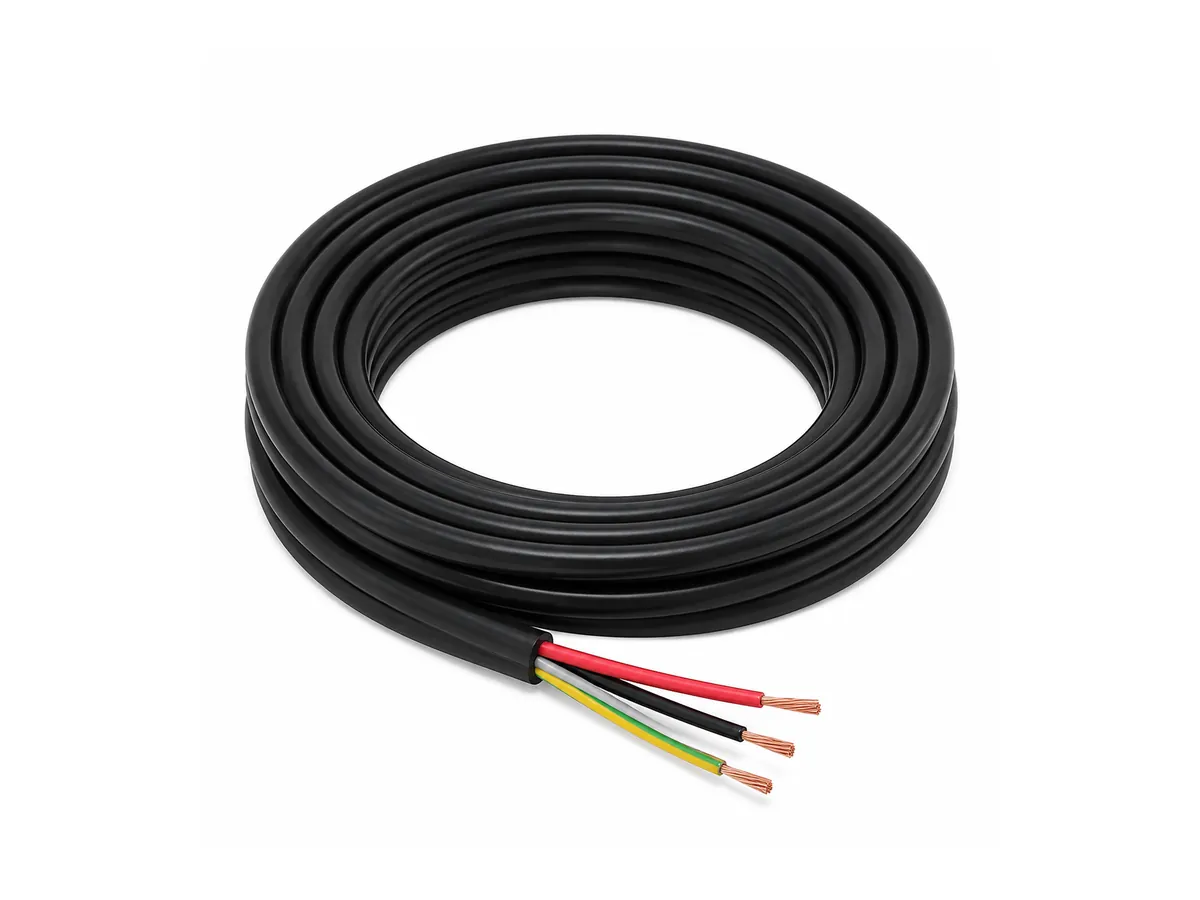

This UL2517 105°C 10 million cycle high-count drag chain servo power cable is designed for power delivery in demanding repetitive-motion machinery. The supplied structure uses fine-stranded tinned-copper conductors, PVC core insulation, color-identified cores, strand filling and a special PVC outer sheath. Reference constructions cover four-core power layouts and a combined power-plus-auxiliary arrangement. With a stated moving bend radius of 6D and fixed radius of 4D, the cable supports compact carrier routing when installed within the verified limits. The supplied sheet lists black sheath color and separately references RAL 2003; final color should therefore be confirmed at quotation.
Key Features
- Designed for 10 million flex cycles under stated test conditions
- UL2517 and 105°C fixed-temperature designation from supplied data
- Fine-stranded tinned-copper conductors
- Four-core and power-plus-auxiliary reference configurations
- U0/U 300/500 V rating and 2000 V test voltage
- Moving bend radius of 6D and fixed bend radius of 4D
- Special PVC insulation and outer sheath
Product Specifications
| Option 1 | 4 × 0.5 mm²; approx. OD 6.0 mm |
|---|---|
| Option 2 | 4 × 0.5 + 2 × 0.3 mm²; approx. OD 6.3 mm |
| Option 3 | 4 × 0.75 mm²; approx. OD 6.5 mm |
| Rated voltage | U0/U 300/500 V |
| Test voltage | 2000 V |
| Insulation resistance | Minimum 20 MΩ·km |
| Temperature, moving / fixed | -5°C to +80°C / -15°C to +105°C |
| Minimum bend radius | Moving 6D; fixed 4D |
| Insulation / sheath | Special PVC / special PVC |
| Sheath color note | Black listed; supplied sheet also references RAL 2003—confirm on request |
Values above reproduce the supplied product sheet. Other specifications are available upon request.
Applications
- Servo motor power supply
- High-count drag-chain systems
- Machine tools and robotic axes
- Automated production equipment
Customization Options
- Power and auxiliary conductor layout
- Sheath color subject to sample confirmation
- Servo connector termination
- Length, marking, reel and carton format
Packaging & Shipping
Cables can be supplied in coils, reels or export cartons selected for the ordered diameter and length. Each package can carry the product reference, length, batch identification and customer label. Palletizing, moisture protection and shipping marks are available for sea, air and courier transport. Exact reel size, carton quantity and gross weight are confirmed after the final specification is approved.
Manufacturing & Quality Control
Production follows an approved specification from conductor preparation and insulation through cabling, shielding and sheathing. In-process controls cover conductor arrangement, dimensions and appearance. Finished-cable inspection can include continuity, insulation resistance and voltage testing where applicable. Samples and inspection documents are available according to the agreed order requirements.
FAQ
What information is needed for a quotation?
Please provide the required construction, cable length, quantity, moving radius, operating environment and termination details for the UL2517 drag chain servo power cable.
Can the conductor layout be customized?
Yes. Power and auxiliary conductor layout can be reviewed against your drawing and electrical requirements.
Can you supply finished cable assemblies?
Connectorized assemblies are available upon request after the connector model, pinout and test requirements are confirmed.
What is the minimum order quantity?
MOQ depends on the selected construction, material and packaging. Contact us for the applicable production quantity.
What lead time should buyers expect?
Lead time depends on specification approval, raw-material availability and order volume. A project schedule is provided with the quotation.
Can you provide a sample?
Sample availability depends on the selected construction. Existing samples or a custom pre-production sample can be discussed.
How is the cable tested?
Applicable checks may include conductor continuity, dimensional inspection, insulation resistance, voltage testing and visual inspection according to the approved specification.
How should the cable be installed?
Observe the stated temperature and minimum bend-radius limits, avoid twisting, and provide proper strain relief throughout the moving path.
Can packaging and marking be customized?
Servo connector termination and Length, marking, reel and carton format are available subject to artwork and order review.
