Omron-Compatible Servo Encoder Cable Harness
Custom R88A-series encoder feedback harness for servo systems and dynamic automation equipment
Product Overview
This Omron-compatible servo encoder cable harness is designed for encoder feedback connections in industrial servo systems, automated machinery and continuous-motion equipment. The supplied product reference covers several R88A cable families with white, black rectangular and right-angle circular connector configurations, plus separated color-coded terminal leads. Standard-flex and high-flex versions can be produced according to the confirmed equipment interface and motion conditions. Connector type, pinout, terminal arrangement and cable length must be verified before production. This is an independently manufactured compatible cable assembly and is not represented as an original Omron product.
Key Features
- Compatible configurations available for selected Omron servo power interfaces

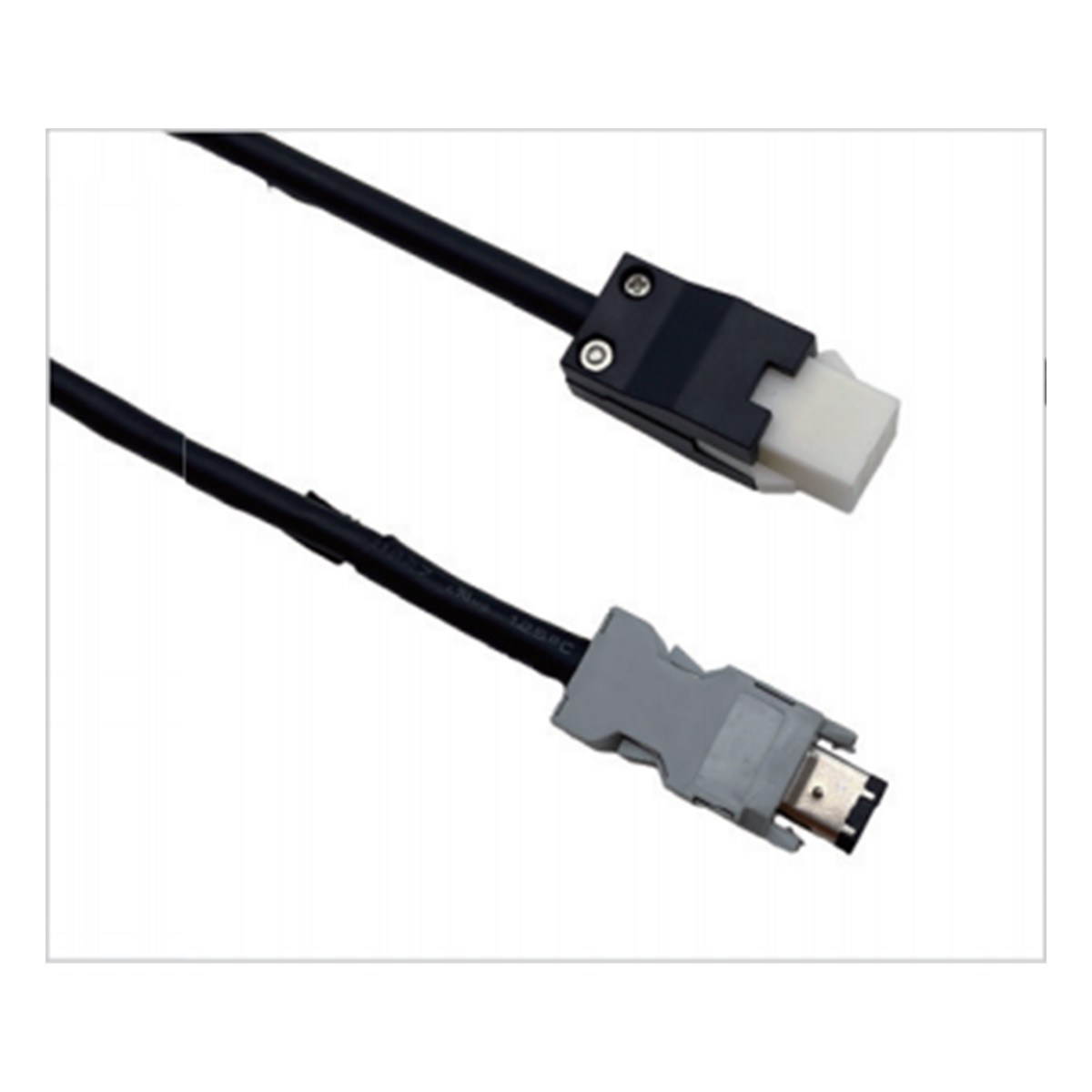

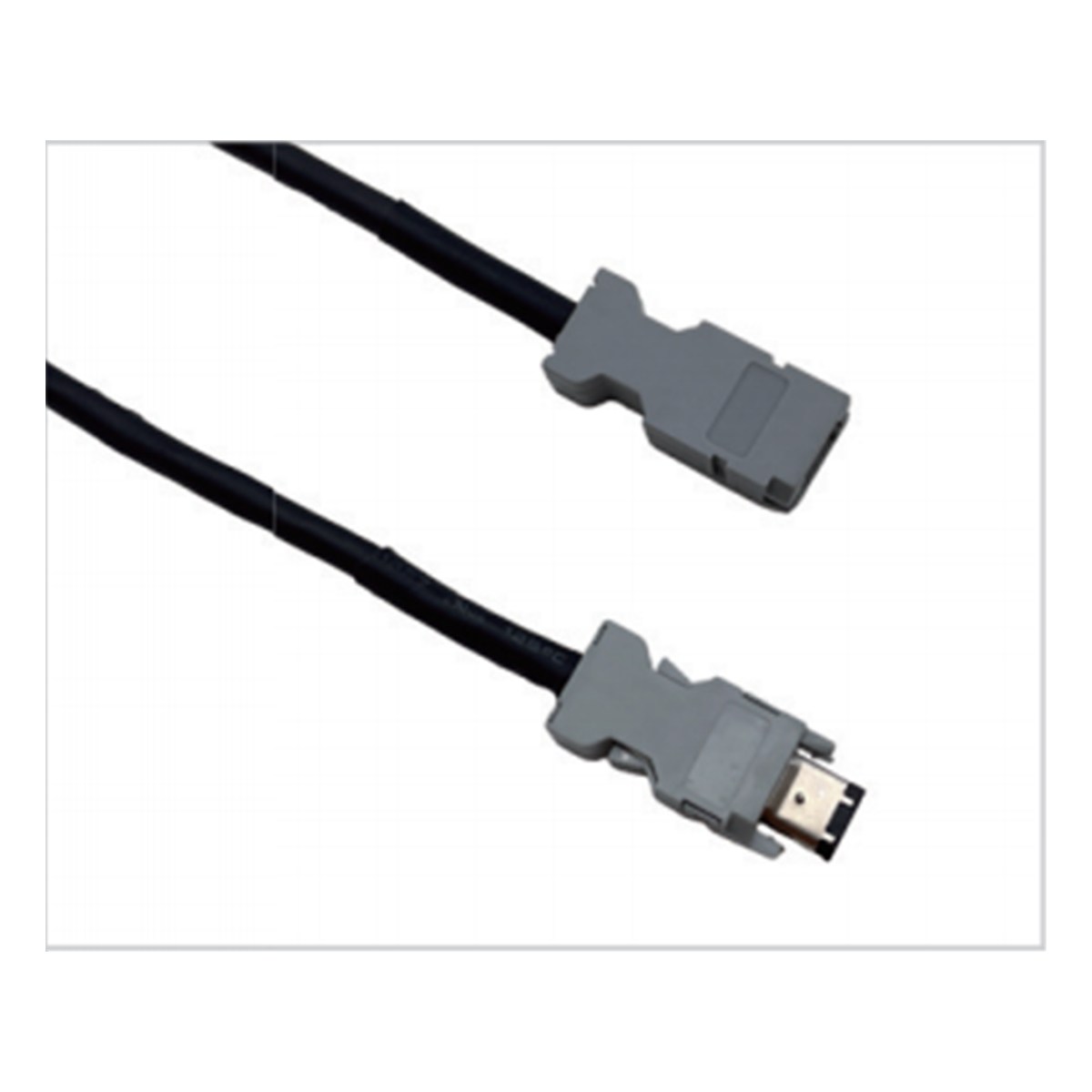

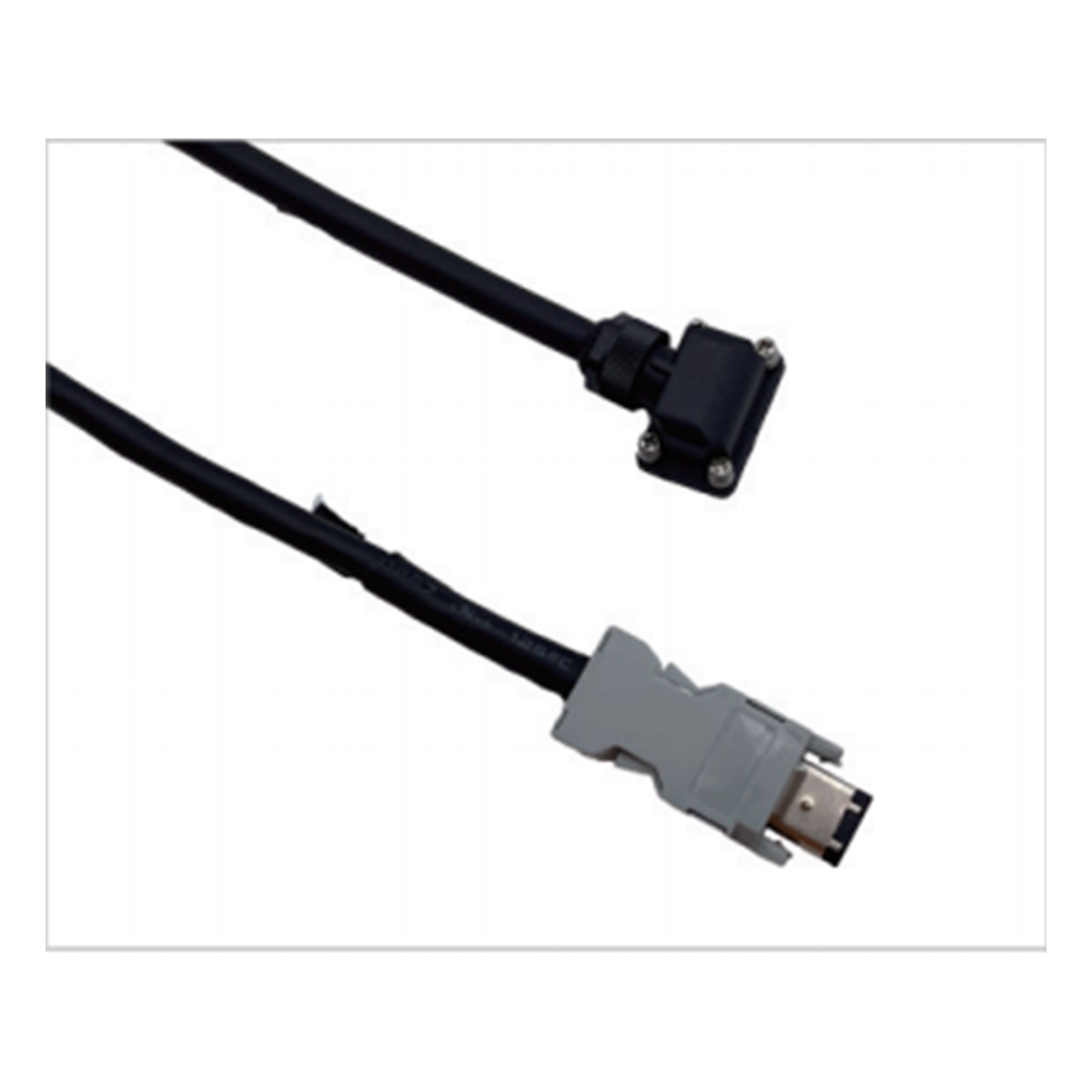

- Multiple connector styles based on the supplied R88A encoder cable-family reference
- Standard-flex and high-flex constructions available by application
- Color-coded conductors simplify wiring identification
- Options for fixed, non-drag-chain moving and drag-chain installations
- Custom length, terminal, labeling and packaging options
- Continuity and wiring-sequence inspection available before shipment
Product Specifications
| Product Type | Servo power supply cable harness |
|---|---|
| Compatibility | Selected Omron servo systems; confirm equipment model and interface before ordering |
| Referenced Model Families | R88A-CR1A, R88A-CRGA, R88A-CRGB and R88A-CRGD0R3C series; complete suffix must be confirmed |
| Connector Options | White plug, black rectangular plug, white multi-pin plug or right-angle circular connector as shown |
| Installation Types | Fixed, moving outside a drag chain, or moving inside a drag chain |
| Cable Length | Custom options available |
| Electrical Data | Available upon request after model, pinout and drawing confirmation |

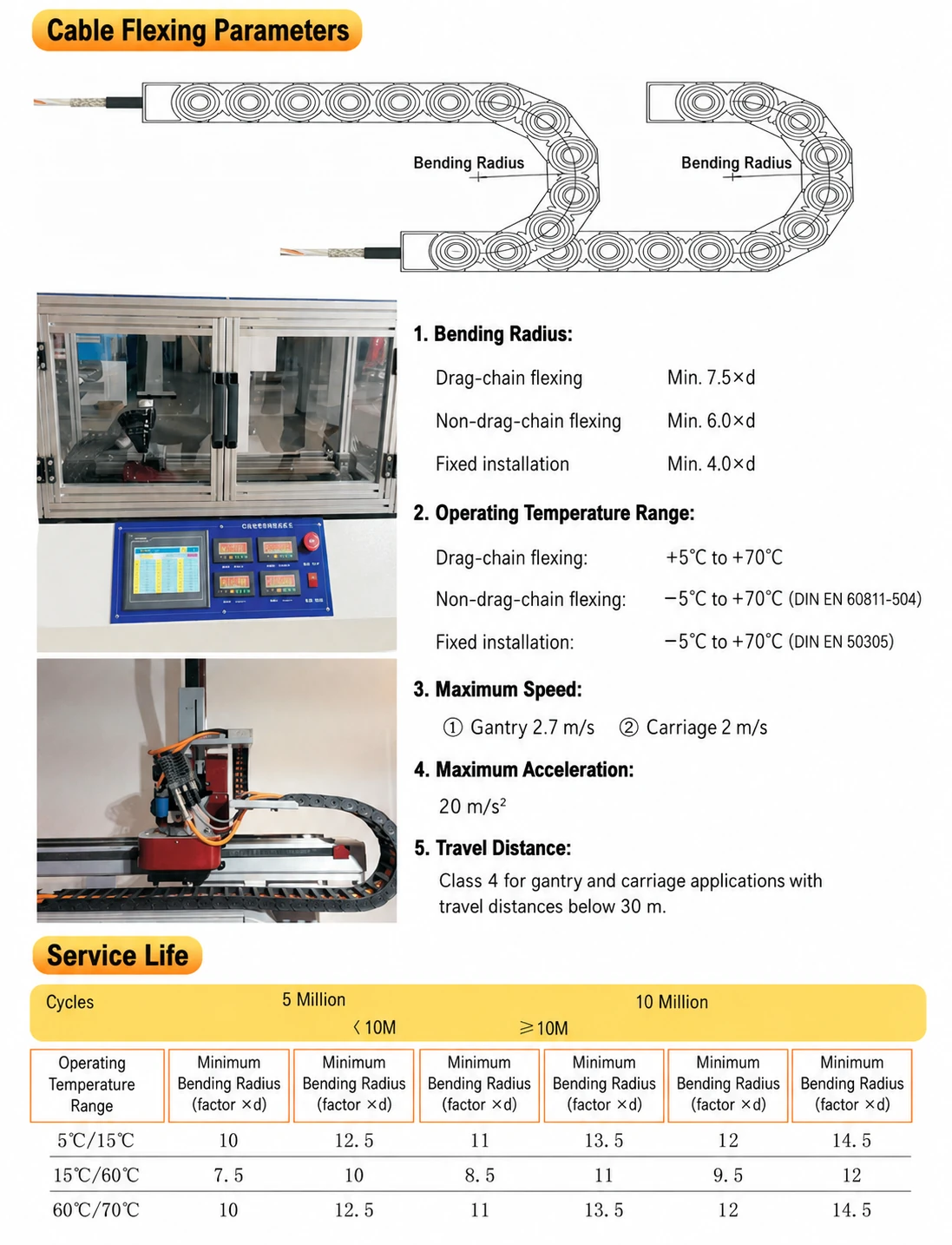

Translated Dynamic-Cable Reference
| Minimum Bend Radius — Moving Inside Drag Chain | 7.5 × cable diameter |
|---|---|
| Minimum Bend Radius — Moving Outside Drag Chain | 6.0 × cable diameter |
| Minimum Bend Radius — Fixed Installation | 4.0 × cable diameter |
| Temperature — Moving Inside Drag Chain | +5°C to +70°C |
| Temperature — Moving Outside Drag Chain | −5°C to +70°C; supplied sheet references DIN EN 60811-504 |
| Temperature — Fixed Installation | −5°C to +70°C; supplied sheet references DIN EN 50305 |
| Maximum Speed — Unsupported/Overhead | 2.7 m/s |
| Maximum Speed — Gliding | 2 m/s |
| Maximum Acceleration | 20 m/s² |
| Travel Reference | Gliding application below 30 m: Class 4 |
| Service-Life Reference | 5 million or 10 million double-stroke cycles, depending on selected construction, temperature and bend radius |
Reference Bend-Radius Factors by Temperature
| Temperature Range | Reference 1 | Reference 2 | Reference 3 | Reference 4 | Reference 5 | Reference 6 |
|---|---|---|---|---|---|---|
| 5°C–15°C | 10d | 12.5d | 11d | 13.5d | 12d | 14.5d |
| 15°C–60°C | 7.5d | 10d | 8.5d | 11d | 9.5d | 12d |
| 60°C–70°C | 10d | 12.5d | 11d | 13.5d | 12d | 14.5d |
These values translate the supplied reference sheet. Confirm the applicable construction and service-life group before ordering.
Applications
- Omron-compatible servo motor encoder feedback connections
- Industrial robots and robotic cells
- CNC machinery and automated production lines
- Gantry, linear module and pick-and-place systems
- Drag-chain and repetitive-motion equipment
- OEM machine wiring and replacement harness projects
Customization Options
Available options include cable length, conductor arrangement, standard- or high-flex construction, connector housing, ring or pin terminals, wire labels, heat-shrink identification, logo marking and export packaging. Please provide the complete servo model, existing cable number, connector photographs, pinout, movement conditions and quantity.
Packaging & Shipping
Harnesses can be individually coiled with connector and terminal protection, labeled bags and export cartons. Customized carton marks, barcode labels and pallet packing are available. Express, air and sea shipment can be arranged according to volume and destination.
Manufacturing & Quality Control
Production can include incoming-material inspection, wire cutting and stripping, terminal crimping, connector assembly, continuity testing, wiring-sequence verification, dimensional checks and final appearance inspection. Dynamic cable selection is reviewed against bend radius, speed, acceleration, travel and temperature.
FAQ
Is this an original Omron cable?
No. It is an independently manufactured compatible harness for selected Omron applications.
How do I confirm compatibility?
Send the complete servo model, current cable number, connector photos, pinout or drawing.
Can cable length be customized?
Yes, after the connector and wiring specification is confirmed.
Are high-flex versions available?
Yes. Provide bend radius, travel, speed, acceleration, temperature and target service life.
Can you match the connector shown?
Yes, subject to complete model and mating-interface confirmation.
Can terminals and labels be customized?
Ring terminals, pin terminals, sleeves and wire labels are available to drawing.
What tests are available?
Continuity and wiring-sequence tests are available; additional tests should be specified.
What is the MOQ?
Available upon request based on the selected connector and cable construction.
Can you provide a sample?
Sample availability is reviewed after technical confirmation.
What information is required for a quote?
Provide the servo model, cable family, length, quantity, pinout and motion conditions.
Request a Quote
Send your Omron servo model, complete R88A cable reference, drawing, required length, movement conditions and purchasing quantity for compatibility review and a customized B2B quotation.
