Yaskawa-Compatible Servo Power Supply Cable Harness

Product Overview

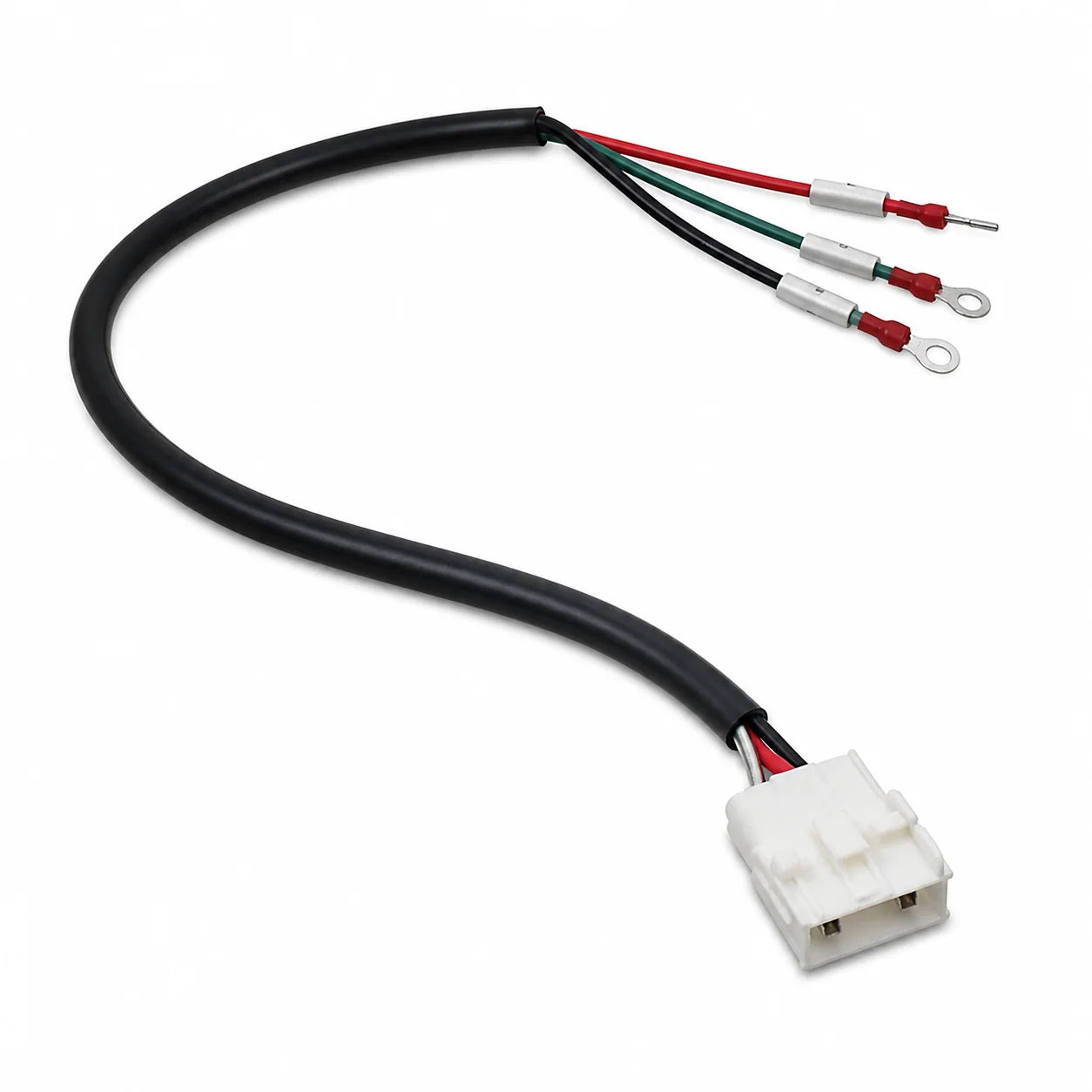

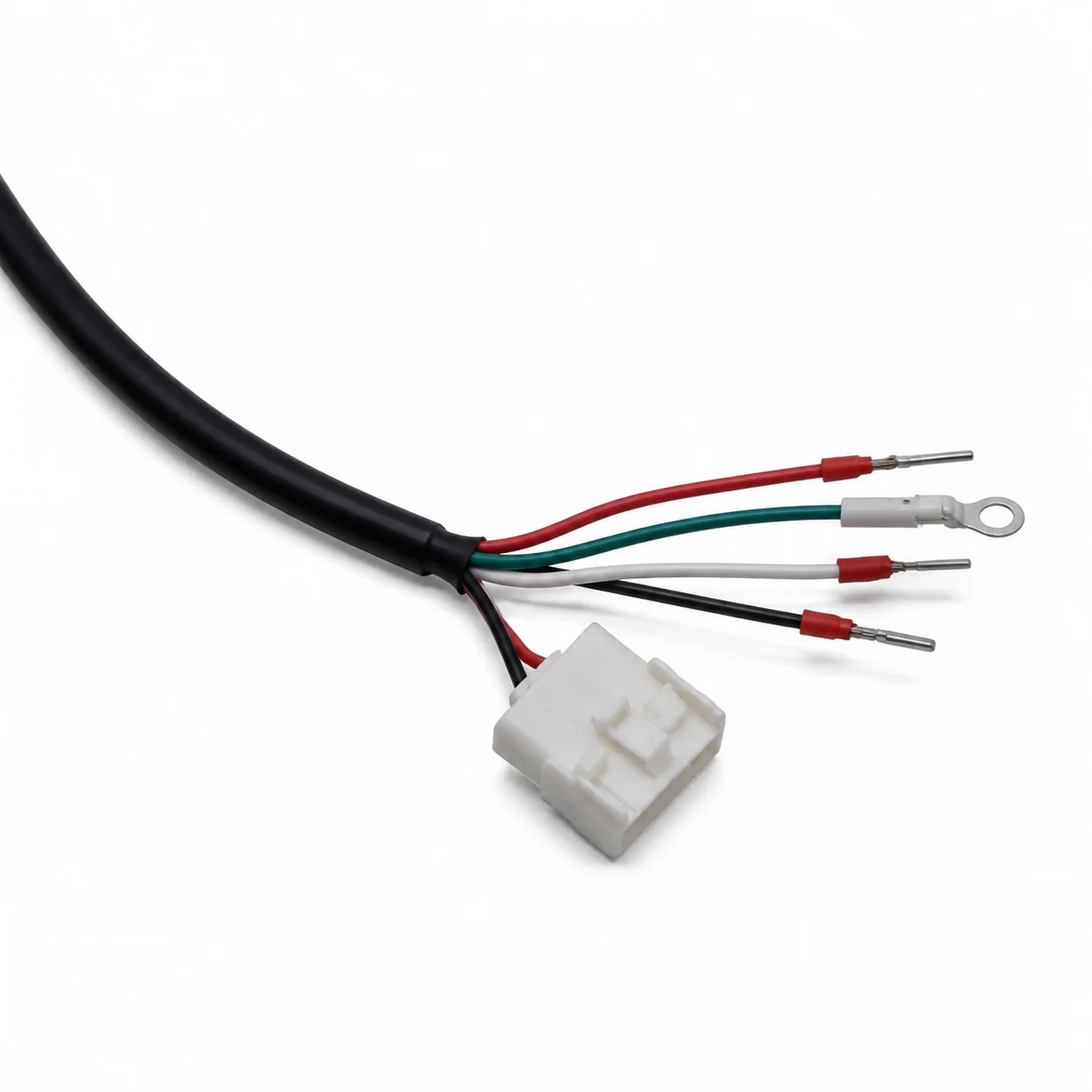

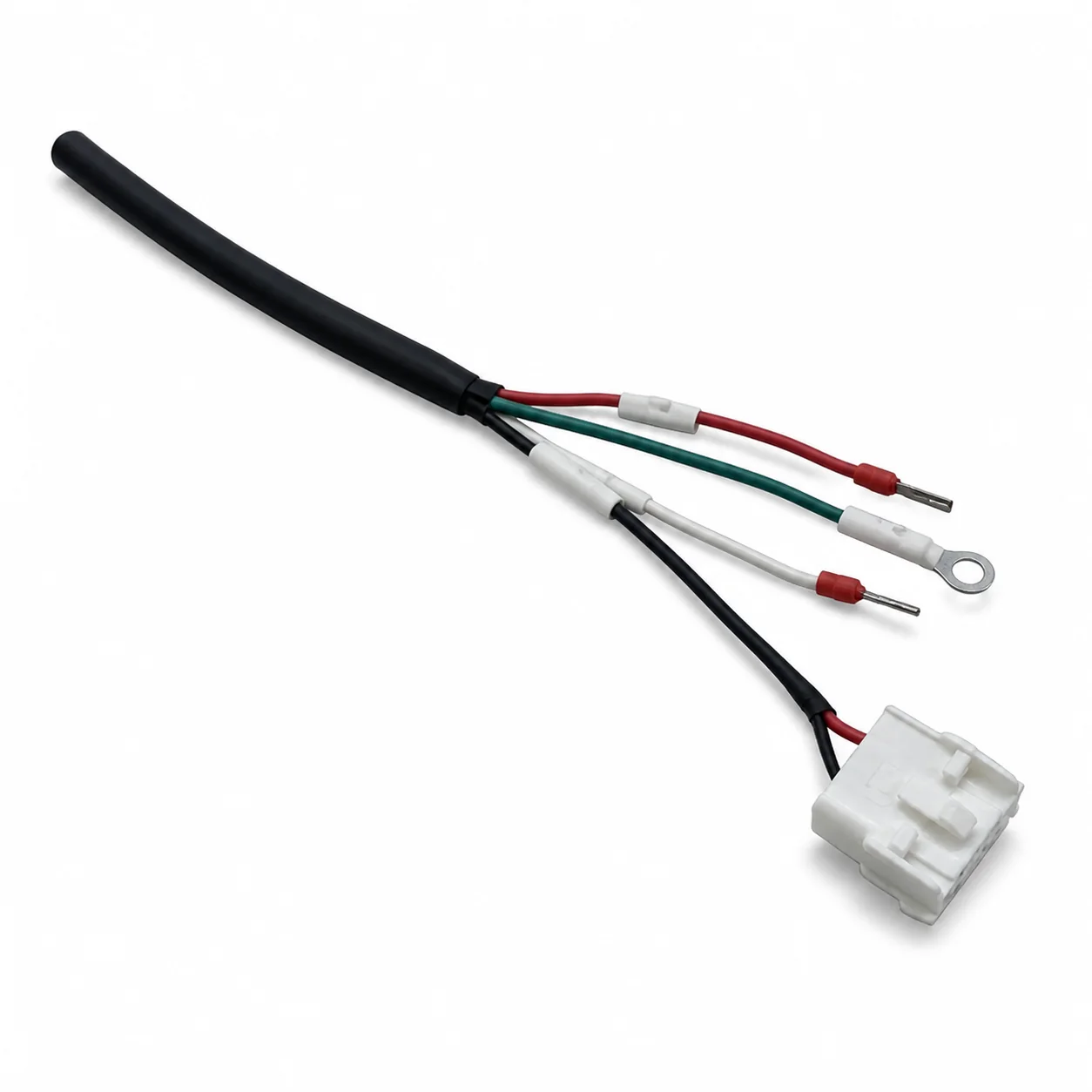

This Yaskawa-compatible servo power supply cable harness is designed for power connections in industrial automation, servo drives and moving equipment. The harness combines a black outer cable with a model-specific connector and separated color-coded leads terminated according to the approved wiring drawing. Standard- and high-flex configurations are available for fixed, non-drag-chain moving and drag-chain installations. Connector type, terminal arrangement and cable length must be matched to the target Yaskawa equipment model before production. This is an independently manufactured compatible cable assembly and is not represented as an original Yaskawa product.

Key Features

• Compatible configurations available for selected Yaskawa servo power interfaces
• Standard and high-flex cable constructions available by application

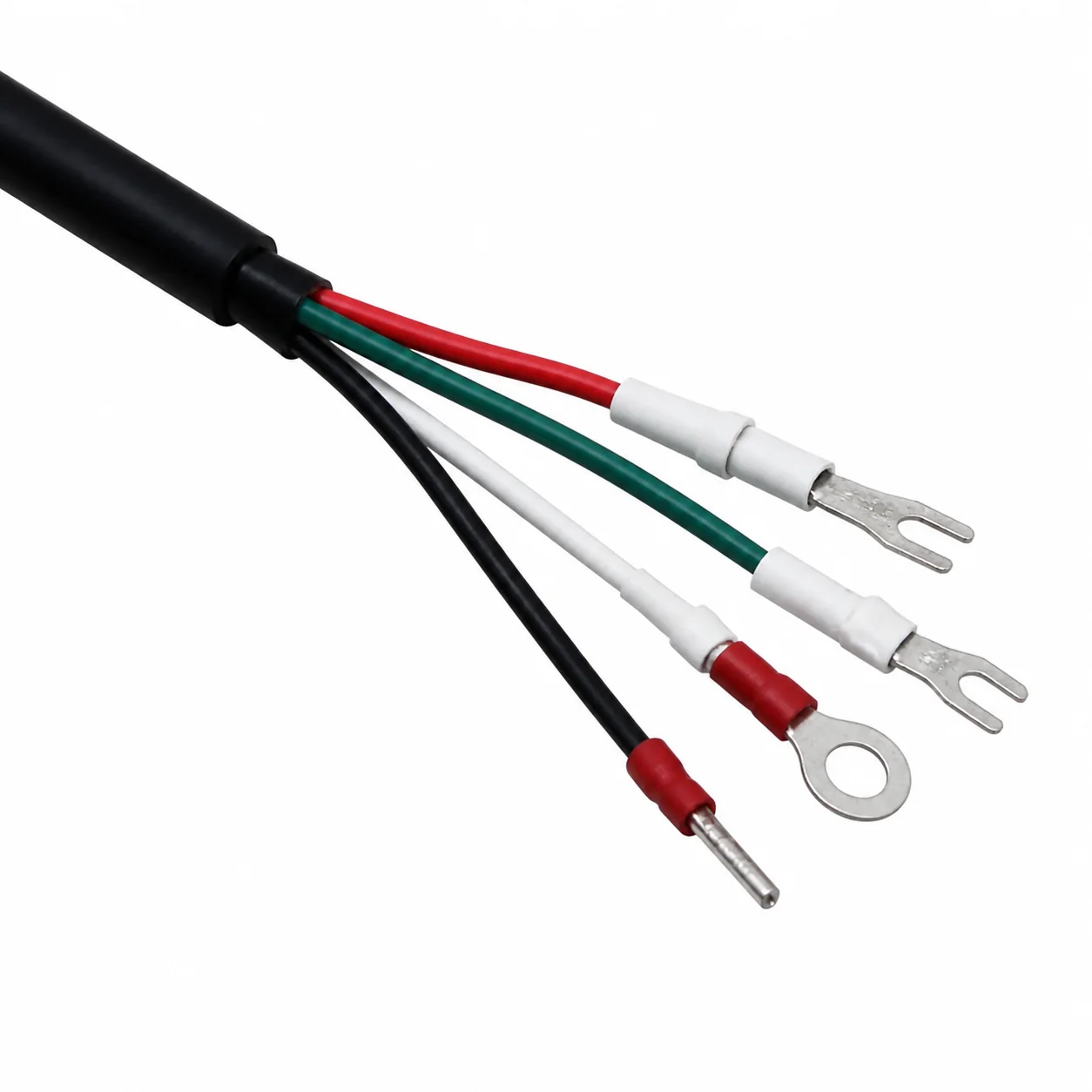

• Color-coded conductors support clear wiring and assembly
• Connector, terminal and lead arrangement manufactured to an approved drawing
• Suitable options for fixed installation, moving machinery and cable carriers
• Custom cable length, jacket, labels, terminals and packaging available
• Electrical continuity and wiring sequence can be inspected before shipment

Product Specifications

Applications

• Yaskawa-compatible servo motor power connections
• Industrial robots and robotic cells
• CNC machines and automated production equipment
• Linear modules, gantries and pick-and-place systems
• Drag-chain and repetitive-motion machinery
• OEM electrical cabinets and equipment assemblies

Customization Options

Customization is available for cable length, conductor configuration, jacket material and color, connector housing, ring, fork or pin terminals, wire labels, heat-shrink identification, logo marking, assembly process and export packaging. Please provide the servo model, interface photographs, pinout, drawing, operating environment, movement type and required quantity.

Packaging & Shipping

Harnesses can be individually coiled and protected with bags, labels and cartons. Connector caps, terminal protection and customized carton marks are available upon request. Shipment can be arranged by express, air or sea according to order volume and destination.

Manufacturing & Quality Control

Production can include incoming-material inspection, wire cutting and stripping, terminal crimping, connector assembly, continuity testing, wiring-sequence verification, dimensional inspection and final appearance checks. For moving applications, the approved cable construction should be selected according to bend radius, speed, acceleration and service-life expectations.

FAQ

Is this an original Yaskawa cable?

No. It is an independently manufactured compatible cable harness for selected Yaskawa applications.

How do I confirm compatibility?

Send the complete equipment model, existing cable number, connector photographs, pinout or drawing for review.

Can the cable length be customized?

Yes. Custom lengths are available after the connector and wiring specification is confirmed.

Can you supply a high-flex drag-chain version?

Yes. Provide the bend radius, travel, speed, acceleration, temperature and target cycle life.

Are different terminals available?

Ring, fork, pin and other terminal options can be produced according to the approved drawing.

Can you add wire labels or heat-shrink markers?

Yes. Identification labels, printed sleeves and heat-shrink markers are available.

What electrical tests are performed?

Continuity and wiring-sequence tests can be performed; additional test requirements should be stated in the purchase specification.

What is the minimum order quantity?

Available upon request based on the connector, cable and customization requirements.

Can you provide a sample before mass production?

Sample availability can be reviewed after the technical specification is confirmed.

What information is needed for a quotation?

Please provide the equipment model, cable length, connector and terminal details, quantity and operating conditions.

Request a Quote

Send your Yaskawa servo model, cable reference, drawing, required length, movement conditions and purchasing quantity. Our team will review compatibility and prepare a customized B2B quotation.
