Mitsubishi-Compatible Servo Power Supply Cable Harness
Custom MR-series compatible power harness for servo systems and dynamic automation equipment
Product Overview

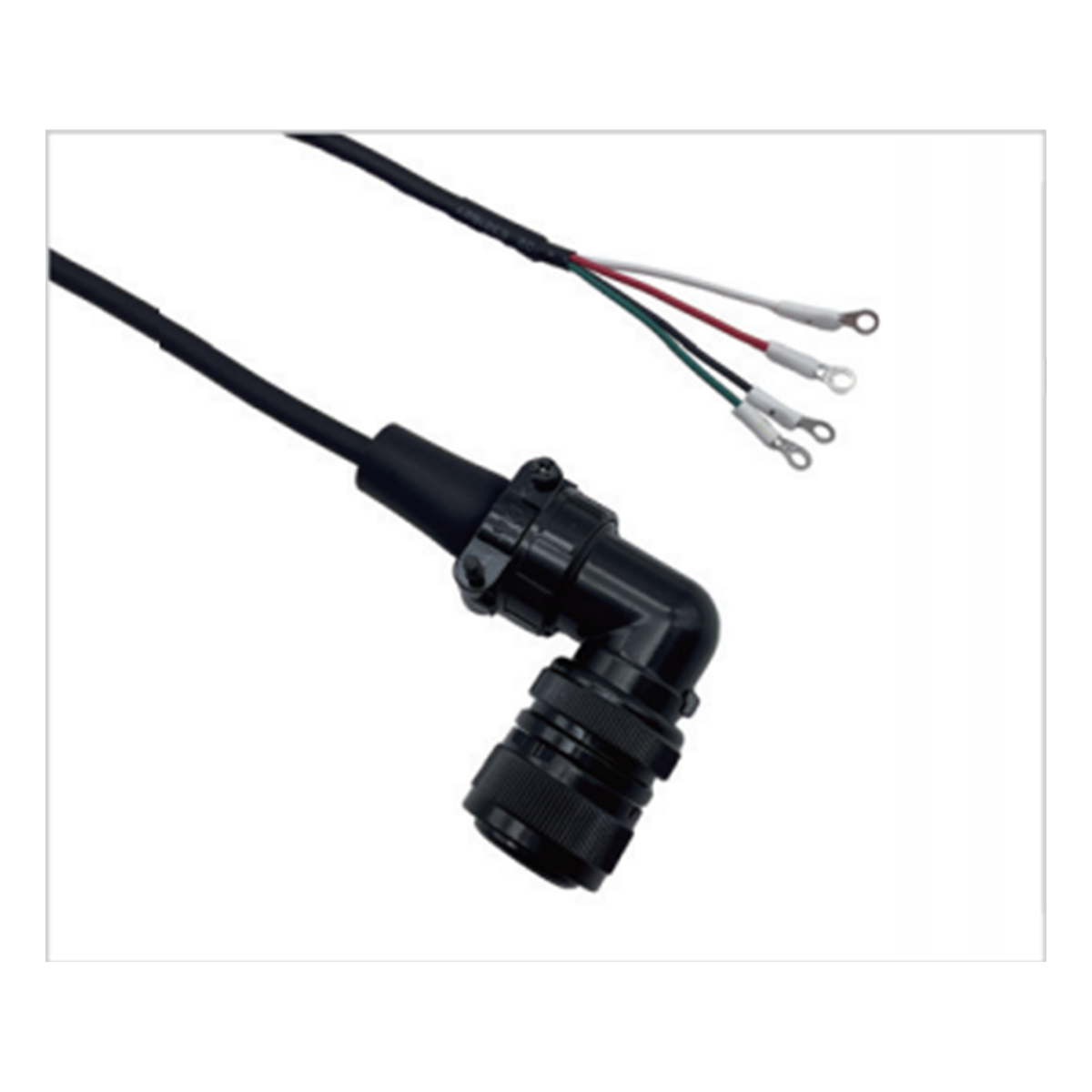

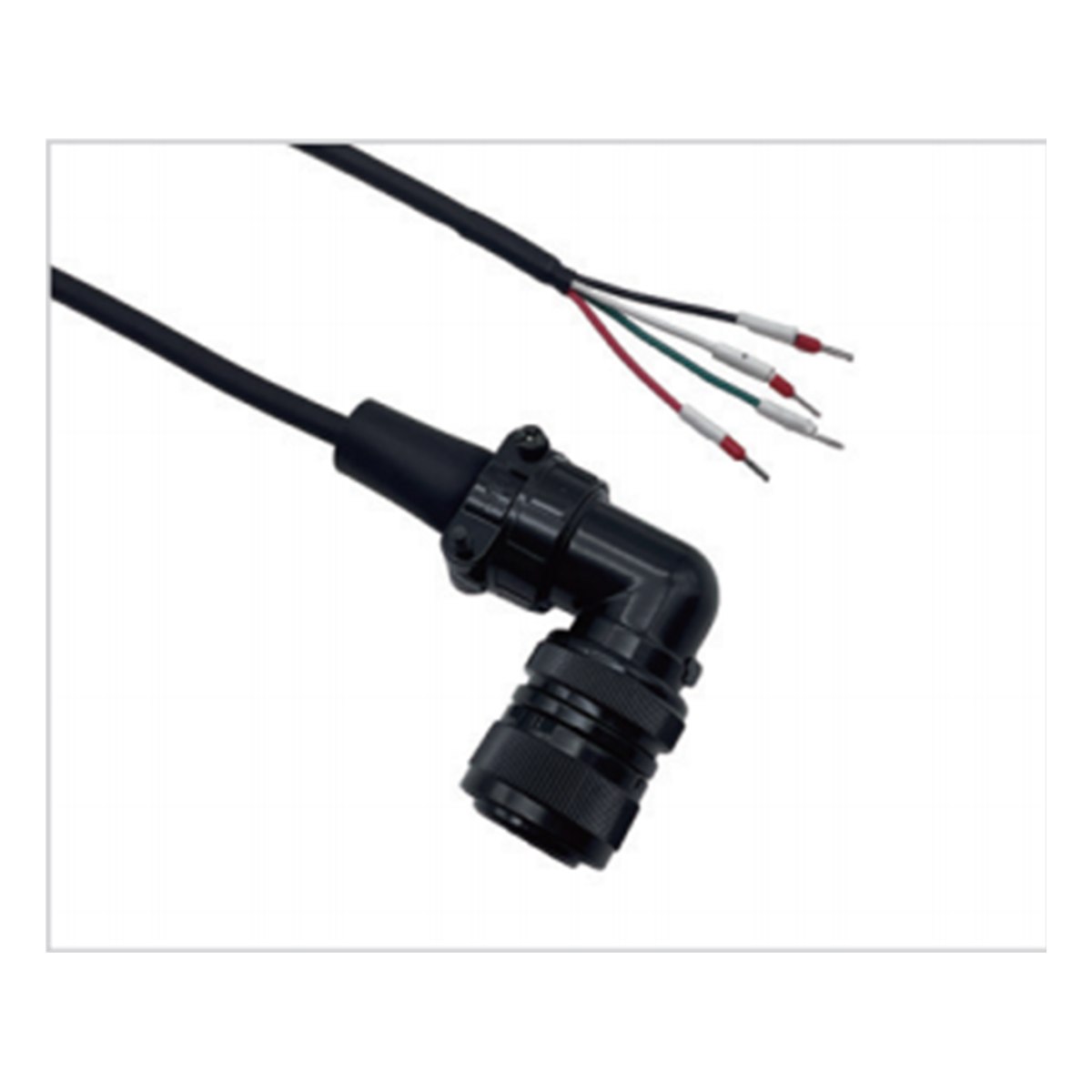

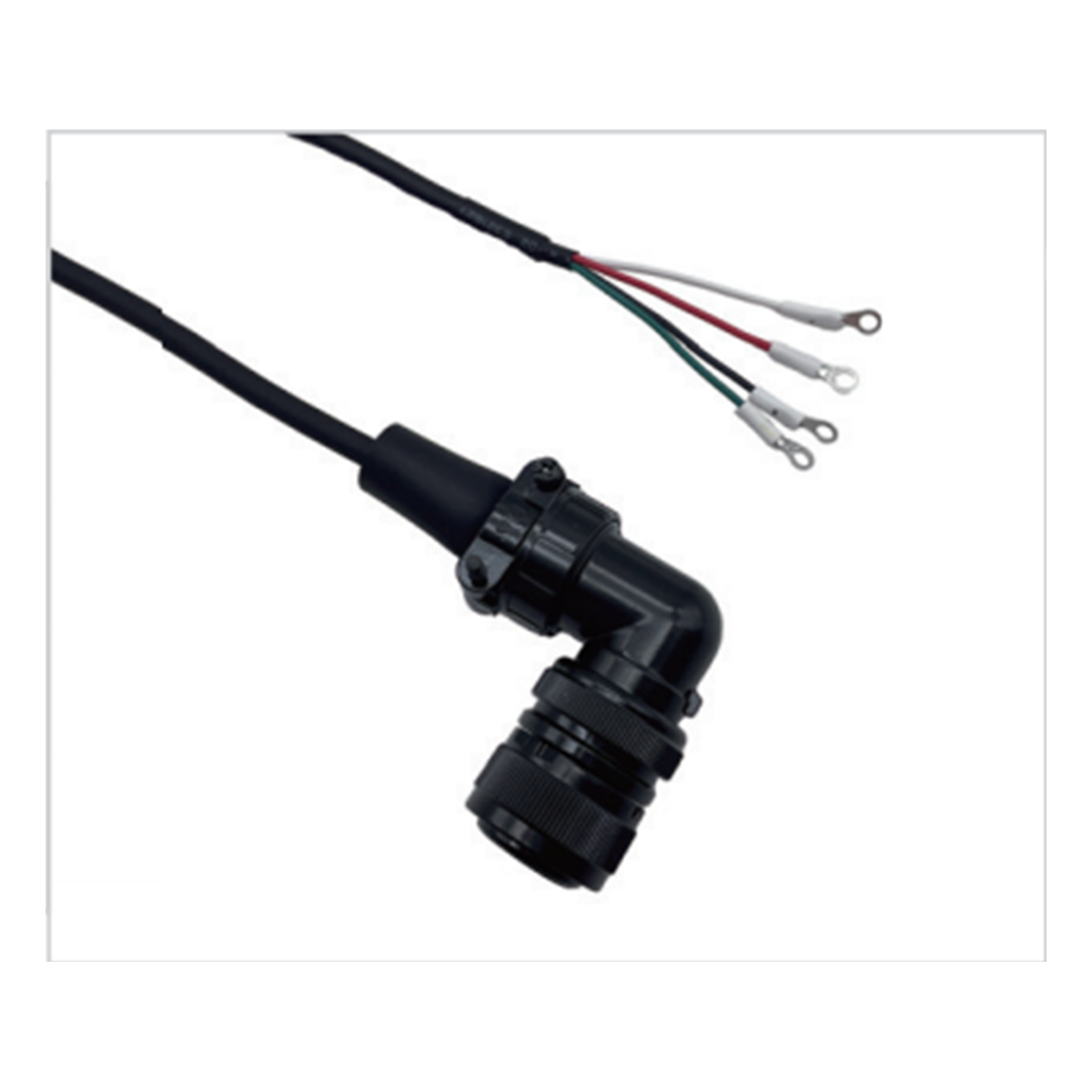

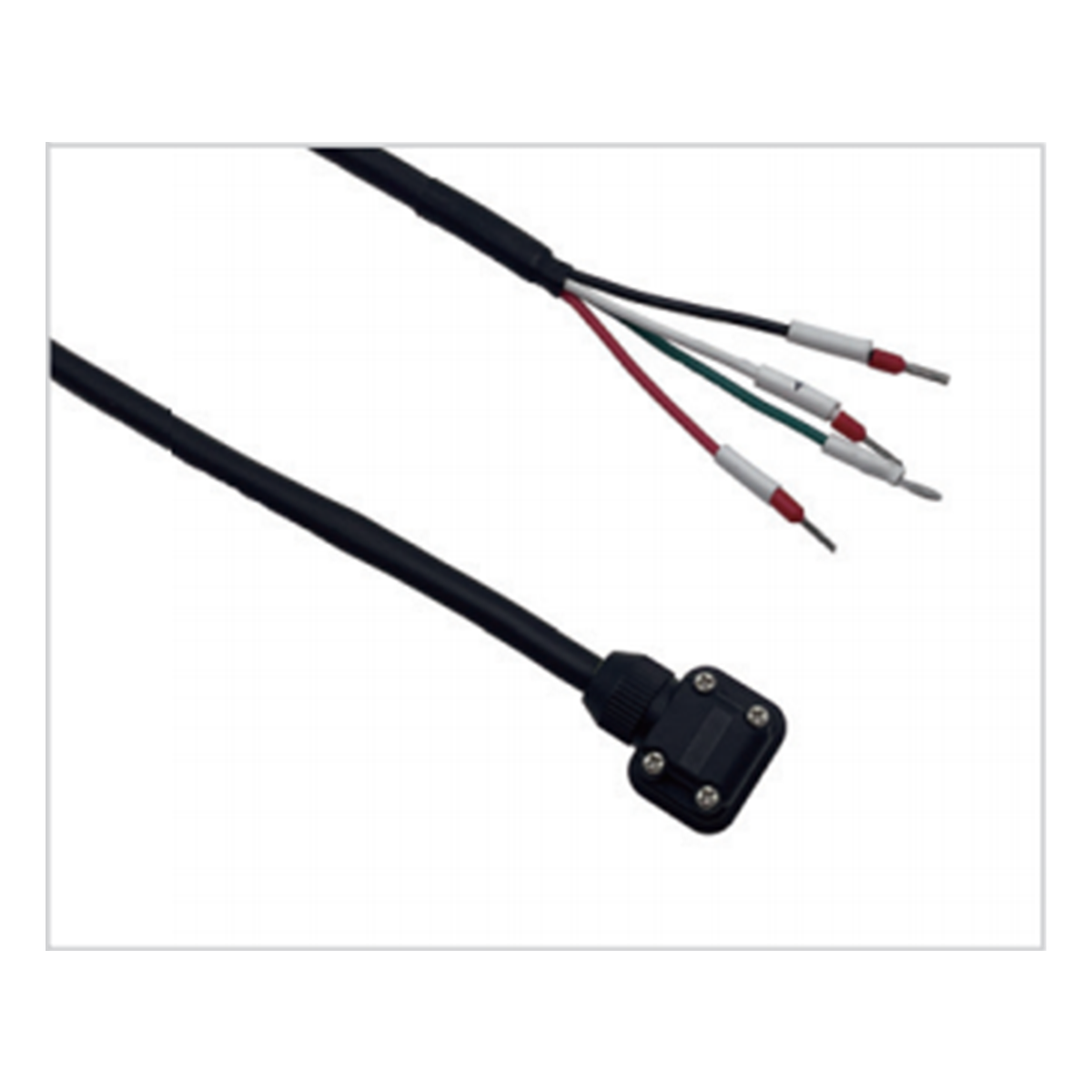

This Mitsubishi-compatible servo power supply cable harness is designed for power connections in industrial servo systems, automated machinery and continuous-motion equipment. The supplied product reference covers MR-PWCNS1, MR-PWCNS4, MR-PWCNS5 and MR-PWS1CBL cable families with right-angle circular or compact black connector configurations and separated color-coded terminal leads. Standard-flex and high-flex versions can be produced according to the confirmed interface and operating conditions. Connector type, complete part number, pinout, terminal arrangement and cable length must be verified before production. This is an independently manufactured compatible cable assembly and is not represented as an original Mitsubishi product.
Key Features
- Compatible configurations available for selected Mitsubishi servo power interfaces
- R88-style connector assumptions are not used; construction follows the supplied MR-series reference
- Standard-flex and high-flex cable options available
- Color-coded conductors support clear field wiring
- Suitable options for fixed, moving and drag-chain installations
- Custom length, connector, terminal, identification and packaging options
- Continuity and wiring-sequence testing available before shipment
Product Specifications
| Product Type | Servo power supply cable harness |
|---|---|
| Compatibility | Selected Mitsubishi servo systems; confirm equipment model and interface before ordering |
| Referenced Model Families | MR-PWCNS1, MR-PWCNS4, MR-PWCNS5, MR-PWS1CBL-M-A1 and MR-PWS1CBL-M-A2 series; complete suffix must be confirmed |
| Connector and Terminals | Right-angle circular or compact black connector with ring or pin terminals according to approved drawing |
| Installation Types | Fixed, moving outside a drag chain, or moving inside a drag chain |
| Cable Length | Custom options available |
| Electrical Data | Available upon request after model, pinout and drawing confirmation |
Translated Dynamic-Cable Reference
| Minimum Bend Radius — Moving Inside Drag Chain | 7.5 × cable diameter |
|---|---|
| Minimum Bend Radius — Moving Outside Drag Chain | 6.0 × cable diameter |
| Minimum Bend Radius — Fixed Installation | 4.0 × cable diameter |
| Temperature — Moving Inside Drag Chain | +5°C to +70°C |
| Temperature — Moving Outside Drag Chain | −5°C to +70°C; supplied sheet references DIN EN 60811-504 |
| Temperature — Fixed Installation | −5°C to +70°C; supplied sheet references DIN EN 50305 |
| Maximum Speed — Unsupported/Overhead | 2.7 m/s |
| Maximum Speed — Gliding | 2 m/s |
| Maximum Acceleration | 20 m/s² |
| Travel Reference | Gliding application below 30 m: Class 4 |
| Service-Life Reference | 5 million or 10 million double-stroke cycles, depending on construction, temperature and bend radius |
Reference Bend-Radius Factors by Temperature
| Temperature Range | Reference 1 | Reference 2 | Reference 3 | Reference 4 | Reference 5 | Reference 6 |
|---|---|---|---|---|---|---|
| 5°C–15°C | 10d | 12.5d | 11d | 13.5d | 12d | 14.5d |
| 15°C–60°C | 7.5d | 10d | 8.5d | 11d | 9.5d | 12d |
| 60°C–70°C | 10d | 12.5d | 11d | 13.5d | 12d | 14.5d |
Values translate the supplied reference sheet. Confirm the applicable cable construction and service-life group before ordering.
Applications
- Mitsubishi-compatible servo motor power connections
- Industrial robots and robotic cells
- CNC machines and automated production lines
- Gantry, linear module and pick-and-place systems
- Drag-chain and repetitive-motion equipment
- OEM machine wiring and replacement harness projects
Customization Options
Available options include cable length, conductor arrangement, standard- or high-flex construction, connector housing, ring or pin terminals, labels, heat-shrink identification, logo marking and export packaging. Provide the complete servo model, existing cable number, connector photographs, pinout, movement conditions and quantity.
Packaging & Shipping
Harnesses can be individually coiled with connector and terminal protection, labeled bags and export cartons. Customized carton marks, barcode labels and pallet packing are available. Express, air and sea shipment can be arranged according to volume and destination.
Manufacturing & Quality Control
Production can include incoming-material inspection, wire cutting and stripping, terminal crimping, connector assembly, continuity testing, wiring-sequence verification, dimensional checks and final appearance inspection. Dynamic cable selection is reviewed against bend radius, speed, acceleration, travel and temperature.
FAQ
Is this an original Mitsubishi cable?
No. It is an independently manufactured compatible harness for selected Mitsubishi applications.
How do I confirm compatibility?
Send the complete servo model, current cable number, connector photographs, pinout or drawing.
Can cable length be customized?
Yes, after connector and wiring specifications are confirmed.
Are high-flex versions available?
Yes. Provide bend radius, travel, speed, acceleration, temperature and target service life.
Can you match the shown connector?
Yes, subject to complete part-number and mating-interface confirmation.
Can terminals and labels be customized?
Ring terminals, pin terminals, sleeves and wire labels are available to drawing.
What tests are available?
Continuity and wiring-sequence tests are available; additional requirements should be specified.
What is the MOQ?
Available upon request based on connector and cable construction.
Can you provide a sample?
Sample availability is reviewed after technical confirmation.
What information is required for a quote?
Provide the servo model, complete MR-series cable reference, length, quantity, pinout and motion conditions.
Request a Quote
Send your Mitsubishi servo model, complete cable reference, drawing, required length, movement conditions and purchasing quantity for compatibility review and a customized B2B quotation.
